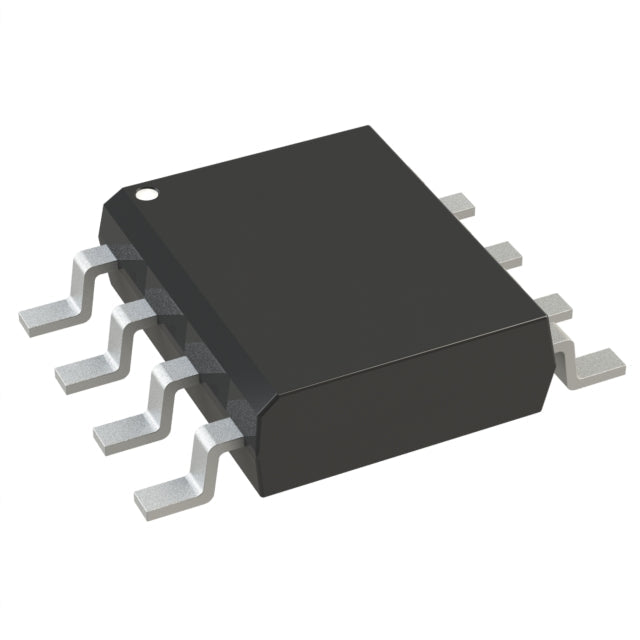

Diodes Incorporated DGD2117S8-13
Regular price
$2.94
Regular price
$3.09
Sale price
$2.94
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.94 | $2.94 |
| 15+ | $2.84 | $42.60 |
| 25+ | $2.78 | $69.50 |
| 50+ | $2.63 | $131.50 |
| 100+ | $2.32 | $232.00 |
| N+ | $0.46 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Driven Configuration | High-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 6V, 9.5V |
| Current - Peak Output (Source, Sink) | 290mA, 600mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 75ns, 35ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| ROHS |  |
DGD2117S8-13.pdf
×
