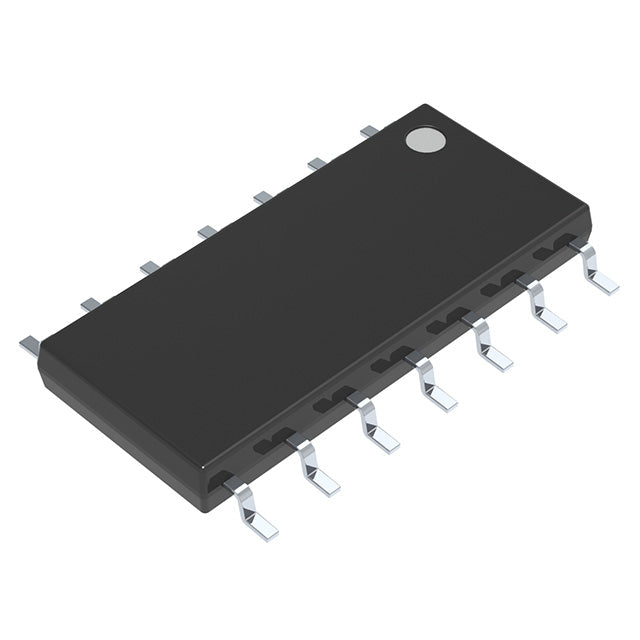

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Diodes Incorporated
DGD21904S14-13
DGD21904S14-13
Regular price
Dhs. 3.75
Regular price
Dhs. 3.93
Sale price
Dhs. 3.75
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.75 AED | Dhs. 3.75 AED |
| 15+ | Dhs. 3.62 AED | Dhs. 54.30 AED |
| 25+ | Dhs. 3.54 AED | Dhs. 88.50 AED |
| 50+ | Dhs. 3.34 AED | Dhs. 167.00 AED |
| 100+ | Dhs. 2.95 AED | Dhs. 295.00 AED |
| N+ | Dhs. 0.59 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Diodes Incorporated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.5V |
| Current - Peak Output (Source, Sink) | 4.5A, 4.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 25ns, 20ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SO |
| ROHS |  |
Datasheets:
DGD21904S14-13
.pdf
×
