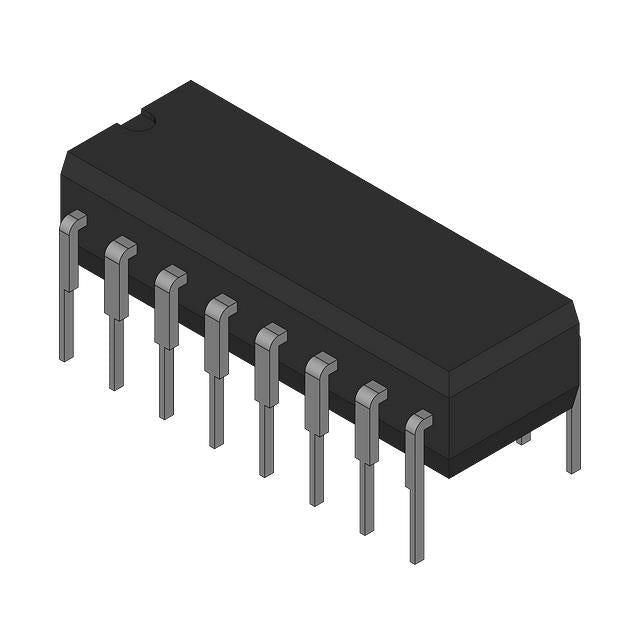

National Semiconductor DM74175N
Regular price
$0.50
Regular price
$0.53
Sale price
$0.50
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.50 | $0.50 |
| 15+ | $0.49 | $7.35 |
| 25+ | $0.48 | $12.00 |
| 50+ | $0.45 | $22.50 |
| 100+ | $0.40 | $40.00 |
| N+ | $0.08 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | National Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Complementary |
| Number of Elements | 1 |
| Number of Bits per Element | 4 |
| Clock Frequency | 30 MHz |
| Max Propagation Delay @ V, Max CL | 25ns @ 5V, 15pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 16mA, 800µA |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Iq) | 45 mA |
| Input Capacitance | - |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-PDIP |
| Supplier Device Package | 16-DIP (0.300", 7.62mm) |
DM74175N.pdf
×
