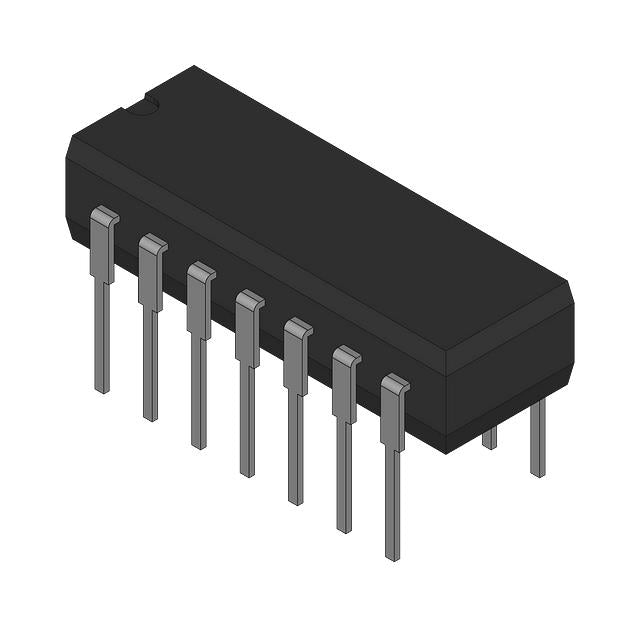

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
DM7420N
Regular price
Dhs. 1.09
Regular price
Dhs. 1.12
Sale price
Dhs. 1.09
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.09 AED | Dhs. 1.09 AED |
| 15+ | Dhs. 1.03 AED | Dhs. 15.45 AED |
| 25+ | Dhs. 1.01 AED | Dhs. 25.25 AED |
| 50+ | Dhs. 0.95 AED | Dhs. 47.50 AED |
| 100+ | Dhs. 0.84 AED | Dhs. 84.00 AED |
| N+ | Dhs. 0.17 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Recycling Electronic Components
| Product attributes | Property Value |
| Manufacturer | Fairchild Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 4 |
| Features | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Quiescent (Max) | 11 mA |
| Current - Output High, Low | 400µA, 16mA |
| Input Logic Level - Low | 0.8V |
| Input Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 15ns @ 5V, 15pF |
| Operating Temperature | 0°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP |
| Supplier Device Package | 14-DIP (0.300", 7.62mm) |
DM7420N.pdf
×
