Texas Instruments DRV8143PQDGQRQ1

Skip to product information
1 of 1

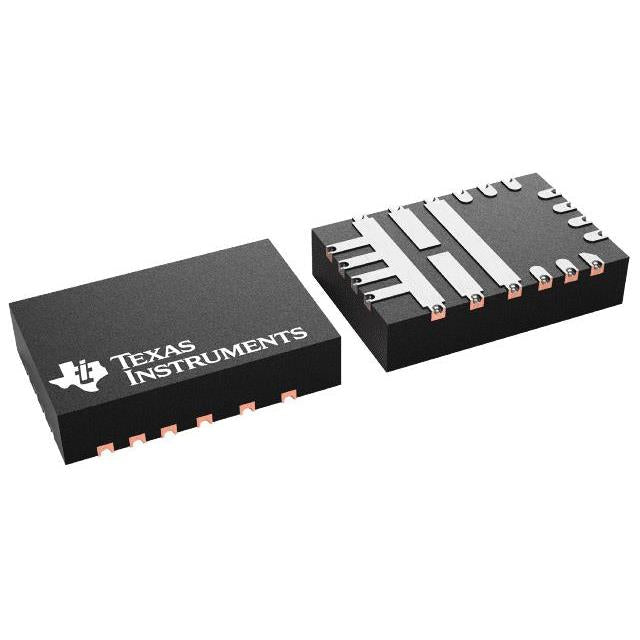

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $4.60
Regular price $4.84 Sale price $4.60
Sale Sold out
Quantity Unit Price Total Price
1 $4.60 $4.60
15+ $4.45 $66.75
25+ $4.36 $109.00
50+ $4.11 $205.50
100+ $3.63 $363.00
N+ $0.73 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Texas Instruments
Product Series
Packaging Tape & Reel (TR) | Cut Tape (CT)
Part Status Active
Motor Type - Stepper -
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration High Side
Interface SPI
Technology NMOS
Step Resolution -
Applications -
Current - Output 20A
Voltage - Supply 4.5V ~ 35V
Voltage - Load 4.5V ~ 35V
Operating Temperature -40°C ~ 125°C (TA)
Grade Automotive
Qualification AEC-Q100
Mounting Type Surface Mount
Package / Case 28-PowerTSSOP (0.118", 3.00mm Width)
Supplier Device Package / Case 28-HTSSOP
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY
