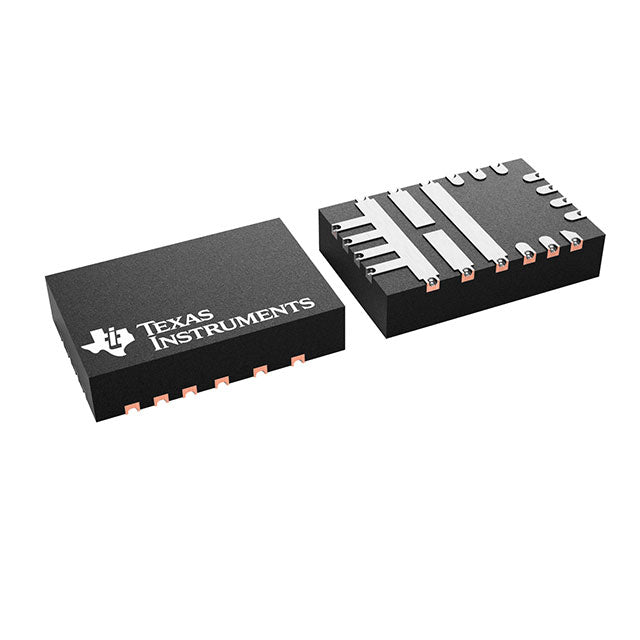

Texas Instruments DRV8243HQRXYRQ1
Regular price
$5.88
Regular price
Sale price
$5.88
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.88 | $5.88 |
| 15+ | $5.41 | $81.15 |
| 25+ | $5.29 | $132.25 |
| 50+ | $5.00 | $250.00 |
| 100+ | $4.41 | $441.00 |
| N+ | $0.88 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | Cut Tape (CT) |
| Part Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Hardwired (HW) |
| Technology | Bi-CMOS |
| Step Resolution | - |
| Applications | - |
| Current - Output | 12A |
| Voltage - Supply | 4.5V ~ 35V |
| Voltage - Load | 4.5V ~ 35V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 14-VFQFN |
| Supplier Device Package / Case | 14-VQFN-HR (3x4.5) |
| ROHS |

×
DRV8243HQRXYRQ1.pdf
