Texas Instruments DRV8304SRHAR
Regular price
$2.44
Regular price
$2.57
Sale price
$2.44
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.44 | $2.44 |
| 15+ | $2.36 | $35.40 |
| 25+ | $2.31 | $57.75 |
| 50+ | $2.18 | $109.00 |
| 100+ | $1.93 | $193.00 |
| N+ | $0.39 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | 3-Phase |
| Number of Drivers | 3 |
| Gate Type | MOSFET (N-Channel) |
| Voltage - Supply | 6V ~ 38V |
| Logic Voltage - VIL, VIH | 0.8V, 1.5V |
| Current - Peak Output (Source, Sink) | 150mA, 300mA |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 300ns, 150ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

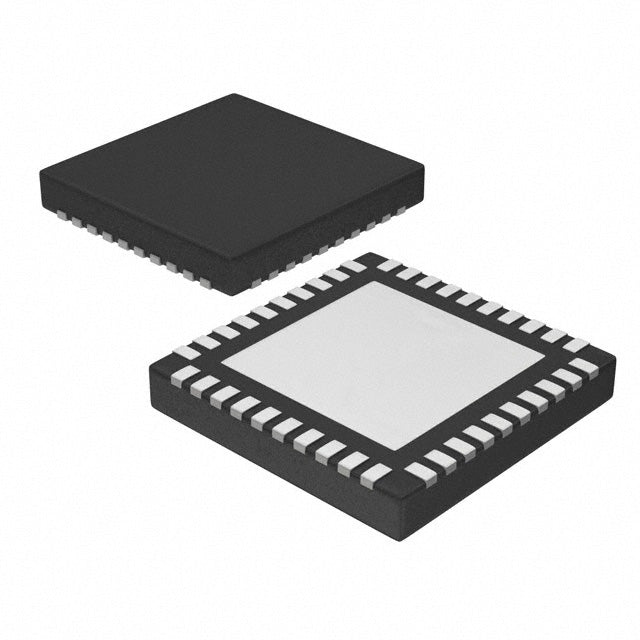

| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
