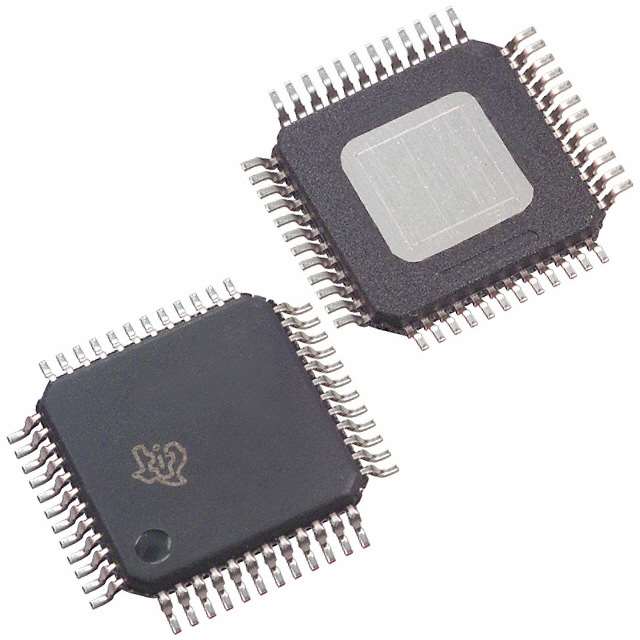

Texas Instruments DRV8305NQPHPQ1
Regular price
$6.72
Regular price
$7.07
Sale price
$6.72
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $6.72 | $6.72 |
| 15+ | $6.50 | $97.50 |
| 25+ | $6.36 | $159.00 |
| 50+ | $6.01 | $300.50 |
| 100+ | $5.30 | $530.00 |
| N+ | $1.06 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tray | |
| Part Status | Active |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | - |
| Function | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Interface | PWM, SPI |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | Three-Phase BLDC, PMSM Motors |
| Current - Output | - |
| Voltage - Supply | 4.4V ~ 45V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 48-PowerTQFP |
| Supplier Device Package / Case | 48-HTQFP (7x7) |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
