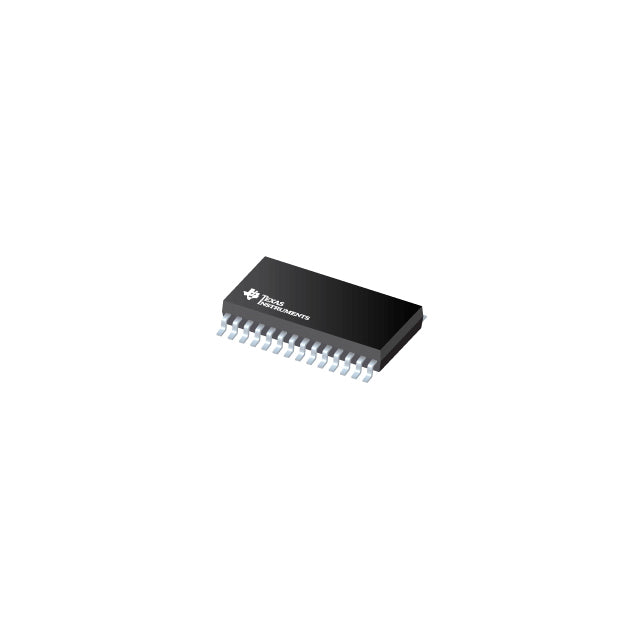

Texas Instruments DRV8424PPWPR
Regular price
$3.76
Regular price
$3.96
Sale price
$3.76
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.76 | $3.76 |
| 15+ | $3.64 | $54.60 |
| 25+ | $3.56 | $89.00 |
| 50+ | $3.37 | $168.50 |
| 100+ | $2.97 | $297.00 |
| N+ | $0.59 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | Cut Tape (CT) |
| Part Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | PWM |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | Consumer, Industrial |
| Current - Output | 2.5A |
| Voltage - Supply | 0V ~ 5.5V |
| Voltage - Load | 4.5V ~ 33V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package / Case | 28-HTSSOP |
DRV8424PPWPR.pdf
×
