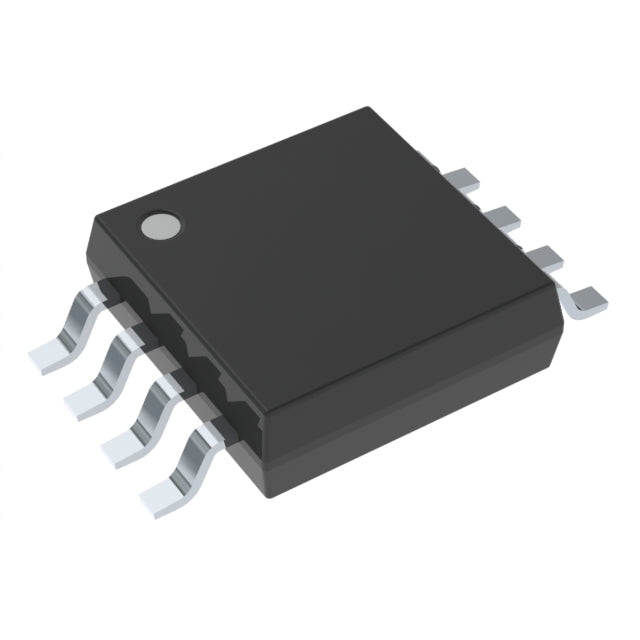

Analog Devices Inc./Maxim Integrated DS1080LU/V+
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $10.49 | $10.49 |
| 15+ | $2.41 | $36.15 |
| 25+ | $2.36 | $59.00 |
| 50+ | $2.23 | $111.50 |
| 100+ | $1.97 | $197.00 |
| N+ | $0.39 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tube | |
| Type | Crystal Multiplier, Spread Spectrum Clock Generator |
| PLL | Yes |
| Input | Clock, Crystal |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Frequency - Max | 134MHz |
| Divider/Multiplier | No/Yes |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| ROHS |  |
The Analog Devices DS1080LU/V+ is a crystal multiplier and spread spectrum clock generator. It features a PLL to multiply a low-frequency crystal or clock input to a high-frequency LVCMOS output up to 134MHz. This device is designed to reduce EMI through spread spectrum modulation, making it suitable for consumer, automotive, and industrial applications.
- Spread Spectrum Capability: Reduces EMI, simplifying compliance with EMC standards.
- Wide Temperature Range: Operates from -40°C to 125°C, ideal for automotive and industrial use.
- Compact Package: 8-pin TSSOP/MSOP saves PCB space.
- Integrated PLL: Multiplies crystal frequency, reducing component count.
EMI Reduction in Consumer Electronics
Use spread spectrum to reduce electromagnetic interference in set-top boxes, DVRs, and gaming consoles. The DS1080LU/V+ modulates the clock frequency to lower peak emissions.
Microcontroller Clock Generation
Generate a precise clock for MCUs from a low-cost crystal. The internal PLL multiplies the reference frequency, saving board space and cost.
Automotive Electronics Timing
Provide reliable clocking in automotive infotainment and body control modules. The wide temperature range (-40°C to 125°C) ensures operation under extreme conditions.
Portable and Battery-Powered Devices
Generate clocks for handheld instruments and wearables. The small 8-pin package and low power consumption are ideal for space-constrained designs.
Industrial Sensor Interfaces
Create a stable clock for sensor signal conditioning and data conversion. The crystal multiplier ensures accurate timing for measurement systems.
Networking Equipment Timing
Provide a low-jitter clock for Ethernet PHYs and switches. The spread spectrum feature helps meet EMC compliance requirements.
- Q: What type of device is the DS1080LU/V+?
- A: It is a Crystal Multiplier and Spread Spectrum Clock Generator from Analog Devices/Maxim Integrated.
- Q: Does it support PLL?
- A: Yes, it has a PLL.
- Q: What are the input and output types?
- A: Inputs accept Clock or Crystal. Output is LVCMOS.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 134MHz.
- Q: What is the package and temperature range?
- A: It comes in 8-TSSOP/8-MSOP package and operates from -40°C to 125°C.
DS1080LU/V+.pdf
- Q: What type of device is the DS1080LU/V+?
- A: It is a Crystal Multiplier and Spread Spectrum Clock Generator from Analog Devices/Maxim Integrated.
- Q: Does it support PLL?
- A: Yes, it has a PLL.
- Q: What are the input and output types?
- A: Inputs accept Clock or Crystal. Output is LVCMOS.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 134MHz.
- Q: What is the package and temperature range?
- A: It comes in 8-TSSOP/8-MSOP package and operates from -40°C to 125°C.
