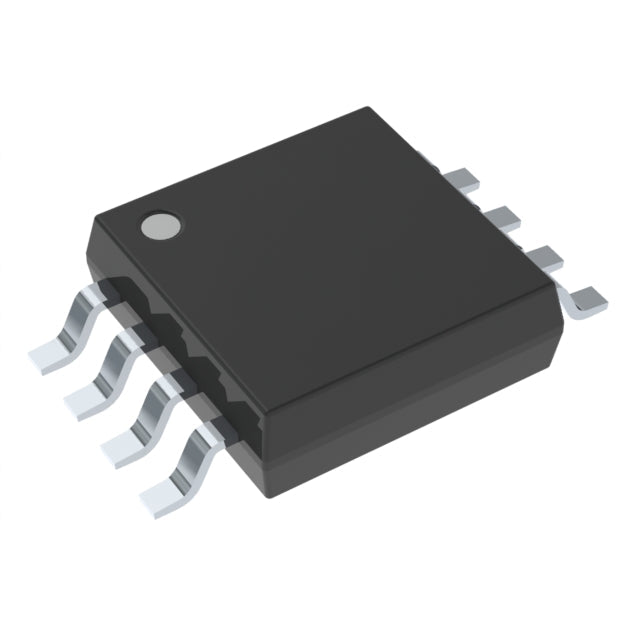

Analog Devices Inc./Maxim Integrated DS1086LU-533+
Regular price
$4.65
Regular price
$4.89
Sale price
$4.65
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.65 | $4.65 |
| 15+ | $4.50 | $67.50 |
| 25+ | $4.40 | $110.00 |
| 50+ | $4.16 | $208.00 |
| 100+ | $3.67 | $367.00 |
| N+ | $0.73 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | EconOscillator™ |
| Packaging | Factory | Tube |
| Type | Spread Spectrum Clock Generator |
| PLL | No |
| Input | Clock |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Frequency - Max | - |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-uMAX/uSOP |
| ROHS |  |
The Analog Devices DS1086LU-533+ is a Spread Spectrum Clock Generator designed for EMI-sensitive applications. It accepts a clock input and outputs a spread-spectrum clock. With a wide temperature range and compact 8-pin package, it is suitable for automotive and industrial use.
- Wide Temperature Range: -40°C to 85°C for industrial reliability.
- EMI Suppression: Reduces radiated emissions without extra shielding.
- Small Footprint: 8-TSSOP/MSOP saves board space.
- Easy to Use: Clock-to-clock interface simplifies integration.
Automotive Electronics
Reduce EMI in infotainment and body control modules operating at -40°C.
Industrial Sensors
Provide low-EMI clocks for sensor interfaces in harsh environments.
Medical Devices
Minimize interference in portable monitoring equipment.
Telecom Equipment
Lower emissions in base station and switching gear.
Security Systems
Reduce EMI in surveillance cameras and access control units.
Power Supplies
Spread spectrum clocking reduces noise in switching regulators.
- Q: What type of device is the DS1086LU-533+?
- A: It is a Spread Spectrum Clock Generator for EMI reduction.
- Q: Does it include a PLL?
- A: No, it does not have a PLL. It generates spread-spectrum clocks directly.
- Q: What are the input and output types?
- A: Both input and output are Clock signals, simplifying design.
- Q: How many circuits does it have?
- A: It has 1 circuit. The frequency is not specified in the data provided.
- Q: What is the temperature range and package?
- A: It operates from -40°C to 85°C and comes in an 8-TSSOP/MSOP package.
Base Product Number ：
DS1086LU
DS1086LU-533+.pdf
