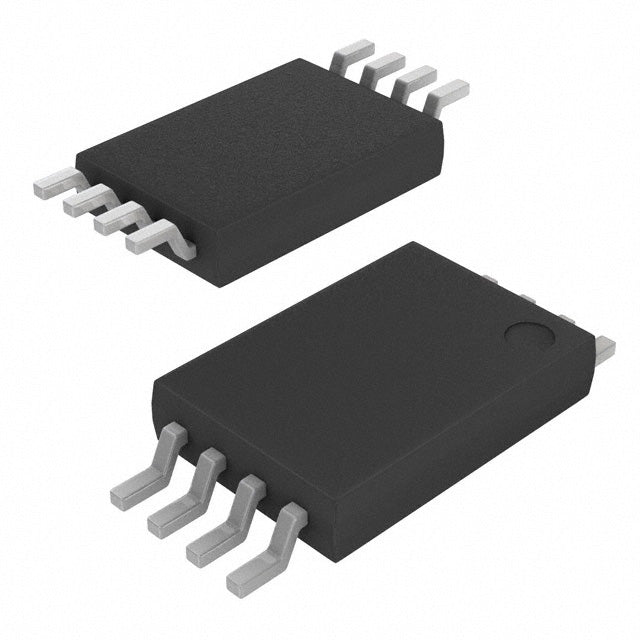

Analog Devices Inc./Maxim Integrated DS2780E+T&R
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.60 | $21.60 |
| 15+ | $4.97 | $74.55 |
| 25+ | $4.86 | $121.50 |
| 50+ | $4.59 | $229.50 |
| 100+ | $4.05 | $405.00 |
| N+ | $0.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Battery Monitor |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | - |
| Interface | 1-Wire |
| Operating Temperature | -20°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| ROHS |  |
The Analog Devices DS2780E+T&R is a compact Battery Monitor for single-cell Lithium Ion/Polymer batteries. It provides essential monitoring capabilities and communicates via the efficient 1-Wire interface. Housed in a small 8-TSSOP package, it is ideal for space-constrained portable electronics. Its operating temperature range of -20°C to 70°C makes it suitable for commercial and indoor applications.
- Simple 1-Wire Interface: Reduces pin count and simplifies PCB layout for compact designs.
- Compact Package: The 8-TSSOP package is ideal for space-limited portable devices.
- Single-Cell Optimization: Specifically designed for 1-cell Lithium Ion/Polymer packs, ensuring accurate monitoring.
- Low Power Consumption: Suitable for battery-powered devices where efficiency is key.
Consumer Electronics Battery Monitoring
Monitor single-cell Lithium Ion/Polymer packs in smartphones, tablets, and wearables. The 1-Wire interface simplifies connectivity with minimal pins.
Portable Medical Devices
Use in battery-powered medical monitors where accurate state-of-charge is critical. The compact 8-TSSOP package fits space-constrained designs.
Handheld Instruments
Integrate into multimeters or portable test equipment to track battery health in commercial environments (0°C to 70°C).
Smart Accessories
Enable battery monitoring in styluses, wireless headphones, or smart pens using the efficient 1-Wire protocol for data communication.
IoT Sensors
Monitor the single-cell power source in wireless IoT sensors, leveraging the low pin count and simple interface for cost-effective designs.
- Q: What is the function of the DS2780E+T&R?
- A: It is a Battery Monitor for single-cell applications.
- Q: What battery chemistry does it support?
- A: It is designed for Lithium Ion/Polymer batteries.
- Q: How many cells can it monitor?
- A: It is designed for 1 cell.
- Q: What communication interface does it use?
- A: It uses the 1-Wire interface.
- Q: What is the operating temperature range?
- A: It operates from -20°C to 70°C (TA).
- Q: What is the package type?
- A: It comes in an 8-TSSOP package.
