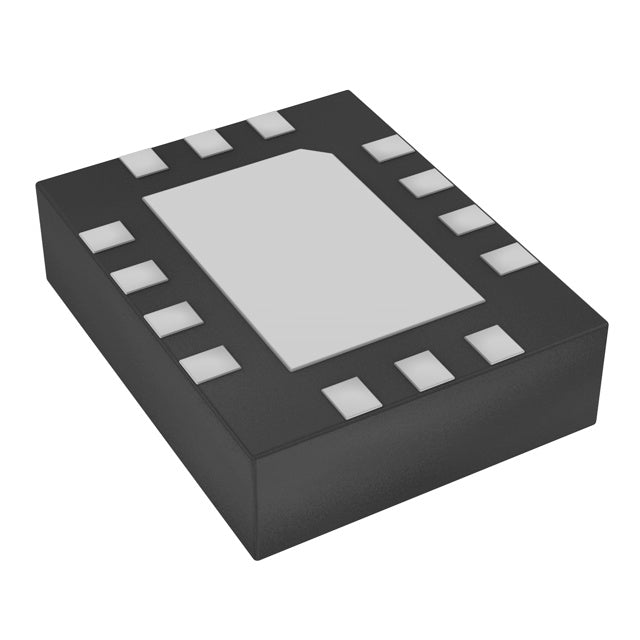

Microchip Technology DSC2010FE2-B0003
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | DSC2010 |
| Packaging | | |
| Type | Clock Generator |
| PLL | Yes |
| Input | - |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 0:1 |
| Differential - Input:Output | No/No |
| Frequency - Max | 155.52MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.25V ~ 3.6V |
| Operating Temperature | -20°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | 14-QFN (3.2x2.5) |
| ROHS |  |
The Microchip DSC2010FE2-B0003 is a clock generator with an integrated PLL, delivering a single LVCMOS output at 155.52MHz. This frequency is ideal for telecom and networking applications such as SONET/SDH and Ethernet. The device is housed in a compact 14-VFQFN package and operates over a temperature range of -20°C to 70°C.
- Standard Telecom Frequency: Provides 155.52MHz, the fundamental clock for SONET/SDH systems.
- Integrated PLL: Ensures low-jitter output for high-reliability communication links.
- Single-Ended Output: LVCMOS simplifies connection to common digital logic.
- Compact Package: 14-VFQFN saves board space.
SONET/SDH Networking
Generate the standard 155.52MHz clock for optical transport systems, ensuring compliance with telecom synchronization standards.
Ethernet Timing
Provide a precise reference clock for 10GbE and 100GbE PHYs, reducing packet jitter and improving link reliability.
Wireless Base Stations
Clock digital signal processors and RF transceivers in cellular infrastructure, maintaining accurate frame timing.
Broadcast Video Equipment
Synchronize SDI video processing with a stable 155.52MHz clock, ensuring frame-accurate switching.
Test & Measurement
Use as a reference clock for bit error rate testers and protocol analyzers in telecom labs.
Industrial Networking
Provide timing for industrial Ethernet switches and controllers, enhancing deterministic communication.
- Q: What type of device is the DSC2010FE2-B0003?
- A: It is a Clock Generator from Microchip Technology.
- Q: Does it have a PLL?
- A: Yes, it includes a PLL.
- Q: What is the output type?
- A: The output type is LVCMOS (single-ended).
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the output frequency?
- A: The output frequency is 155.52MHz.
- Q: What is the temperature range and package?
- A: It operates from -20°C to 70°C and comes in a 14-VFQFN Exposed Pad package.
