Microchip Technology DSC2010FI2-A0001
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | DSC2010 |
| Packaging | | |
| Type | Clock Generator |
| PLL | Yes |
| Input | - |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 0:1 |
| Differential - Input:Output | No/No |
| Frequency - Max | 148.5MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.25V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

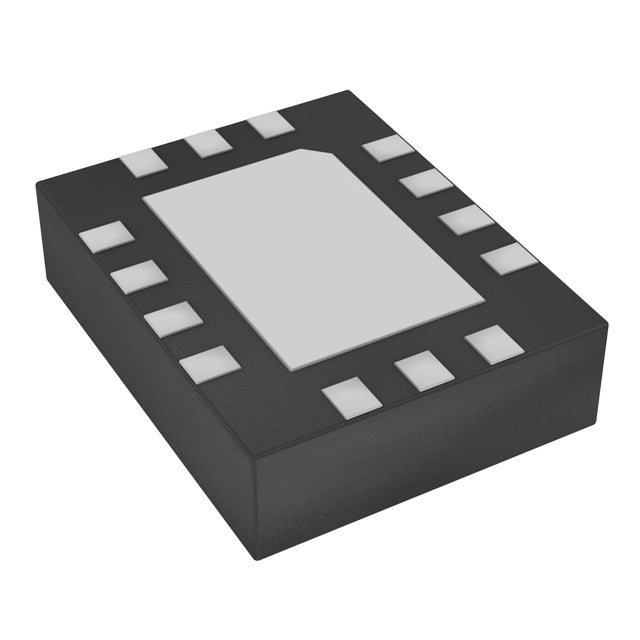

| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | 14-QFN (3.2x2.5) |
| ROHS |  |
The Microchip Technology DSC2010FI2-A0001 is a Clock Generator with an integrated PLL, producing a high-frequency 148.5MHz LVCMOS output. With 1 circuit and a -40°C to 85°C operating range, it is designed for networking, video, and FPGA applications requiring precise timing.
- High Frequency Output: 148.5MHz supports high-speed digital systems.
- Integrated PLL: Provides accurate frequency synthesis.
- Industrial Temperature Range: Suitable for demanding environments.
- Compact VFQFN Package: Ideal for dense PCB layouts.
High-Speed Networking
The DSC2010FI2-A0001 generates a 148.5MHz clock, ideal for high-speed Ethernet PHYs and network processors, ensuring reliable data transmission.
Video Processing
In professional video cameras and broadcast equipment, this clock generator provides the precise timing needed for 1080p and 4K video processing.
FPGA Clocking
For FPGAs requiring a high-frequency reference, this device delivers a stable LVCMOS clock, enabling complex logic designs.
Telecom Infrastructure
In base stations and optical transport systems, the 148.5MHz output supports high-bandwidth signal processing.
Test Equipment
For oscilloscopes and signal analyzers, this clock generator ensures accurate sampling and measurement.
Data Centers
In server switches and routers, it provides a reliable clock for high-speed data paths.
- Q: What type of device is the DSC2010FI2-A0001?
- A: It is a Clock Generator from Microchip Technology, used for generating high-frequency clock signals.
- Q: Does it have a PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL) for frequency multiplication and synthesis.
- Q: What is the output type?
- A: The output type is LVCMOS, providing a standard digital logic level.
- Q: How many circuits are there?
- A: It has 1 circuit, supporting a single clock output.
- Q: What is the maximum frequency?
- A: The maximum output frequency is 148.5MHz.
- Q: What is the temperature range and package?
- A: It operates from -40°C to 85°C and is packaged in a 14-VFQFN Exposed Pad.
