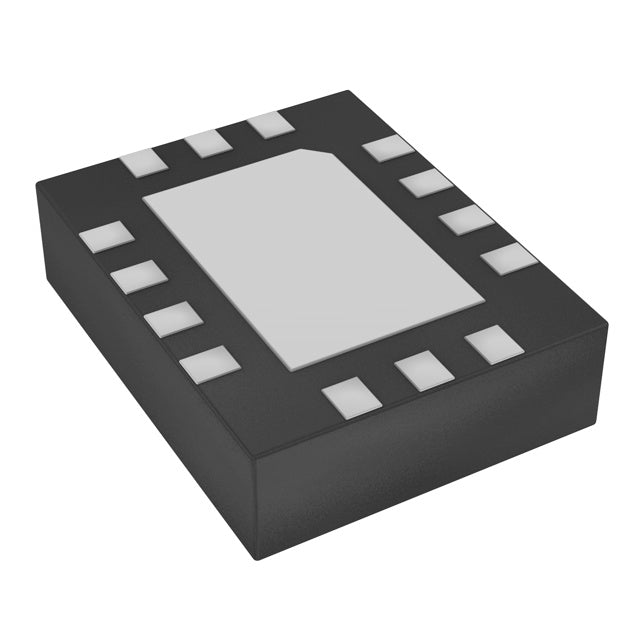

Microchip Technology DSC2010FI2-B0004
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | DSC2010 |
| Packaging | | |
| Type | Clock Generator |
| PLL | Yes |
| Input | - |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 0:1 |
| Differential - Input:Output | No/No |
| Frequency - Max | 155.52MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.25V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | 14-QFN (3.2x2.5) |
| ROHS |  |
The Microchip DSC2010FI2-B0004 is a clock generator with an integrated PLL, providing a single LVCMOS output at 155.52MHz. Designed for industrial applications, it operates over an extended temperature range of -40°C to 85°C. The compact 14-VFQFN package makes it suitable for space-constrained designs in harsh environments.
- Extended Temperature Range: Operates from -40°C to 85°C, ideal for industrial and outdoor applications.
- Standard Frequency: 155.52MHz output is compatible with telecom and networking standards.
- Integrated PLL: Provides low-jitter clock generation for reliable system performance.
- Small Footprint: 14-VFQFN package minimizes PCB area.
Industrial Telecom Equipment
Provide a robust 155.52MHz clock for outdoor base stations and remote radio heads that require wide temperature operation.
Avionics & Defense Timing
Generate reliable clocks for military communication systems operating in extreme environments.
Smart Grid Infrastructure
Synchronize power line communication and substation automation equipment with a stable reference clock.
Transportation Systems
Clock railway signaling and traffic control systems, ensuring reliable operation in harsh conditions.
Oil & Gas Monitoring
Provide timing for downhole telemetry and surface data acquisition systems.
Automotive Test Equipment
Use in engine control unit (ECU) testers that require precise timing over a wide temperature range.
- Q: What type of device is the DSC2010FI2-B0004?
- A: It is a Clock Generator from Microchip Technology.
- Q: Does it have a PLL?
- A: Yes, it includes a PLL.
- Q: What is the output type?
- A: The output type is LVCMOS.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the output frequency?
- A: The output frequency is 155.52MHz.
- Q: What is the temperature range and package?
- A: It operates from -40°C to 85°C and comes in a 14-VFQFN Exposed Pad package.
DSC2010FI2-B0004.pdf
