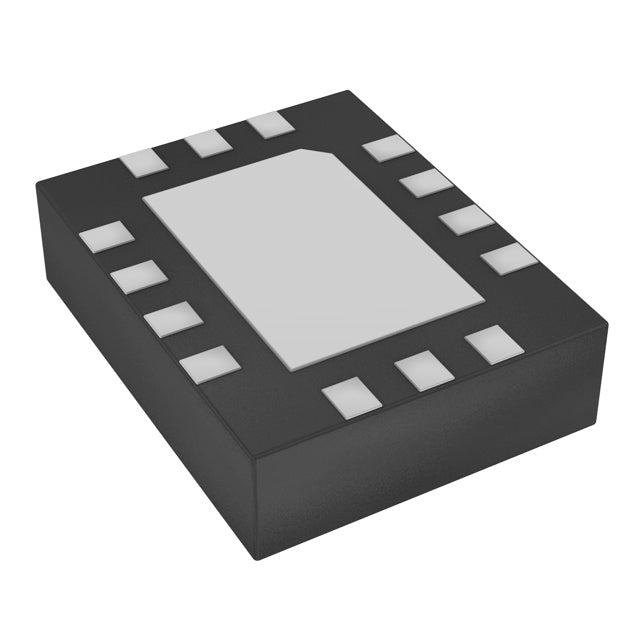

Microchip Technology DSC2011FM1-E0002T
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | DSC2011 |
| Packaging | | |
| Type | Clock Generator |
| PLL | Yes |
| Input | - |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 0:2 |
| Differential - Input:Output | No/No |
| Frequency - Max | 156.25MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.25V ~ 3.6V |
| Operating Temperature | -55°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | 14-QFN (3.2x2.5) |
| ROHS |  |
The Microchip DSC2011FM1-E0002T is a robust clock generator featuring an integrated PLL and a single LVCMOS output. It is designed for applications requiring high reliability across extreme temperatures, from -55°C to 125°C. With a maximum output frequency of 156.25MHz, it provides a stable clock source for networking, industrial, and automotive systems. The compact 14-VFQFN package makes it suitable for space-constrained designs.
- Extreme Temperature Range: Operates from -55°C to 125°C, ideal for harsh environments like aerospace and automotive.
- Integrated PLL: Provides frequency synthesis and jitter cleaning for stable clock generation.
- Compact Package: 14-VFQFN package saves board space in dense designs.
- Single LVCMOS Output: Simple interface for driving digital logic.
Aerospace and Defense Timing
The -55°C to 125°C temperature range makes the DSC2011FM1-E0002T ideal for aerospace, defense, and other extreme-environment applications where reliable clock generation is critical for mission-critical systems.
High-Reliability Networking
Generate stable LVCMOS clocks for networking equipment operating in harsh conditions. The PLL ensures low-jitter output, essential for maintaining signal integrity in high-speed Ethernet and optical transport systems.
Industrial IoT Gateways
Provide precise timing for industrial IoT gateways and edge computing devices. The wide temperature range and compact 14-VFQFN package allow for deployment in remote and rugged locations.
Automotive Electronics
Used in automotive ECUs and infotainment systems where extreme temperature tolerance is required. The PLL generates the necessary clock frequencies for microcontrollers and communication interfaces.
Test and Measurement Equipment
Deliver accurate clock signals for test instruments used in field and lab environments. The device's wide temperature range ensures consistent performance across varying operating conditions.
- Q: What type of device is the DSC2011FM1-E0002T?
- A: It is a Clock Generator from Microchip Technology.
- Q: Does it have a PLL?
- A: Yes, it includes a PLL.
- Q: What is the output type?
- A: The output type is LVCMOS.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 156.25MHz.
- Q: What is the operating temperature range and package?
- A: It operates from -55°C to 125°C and comes in a 14-VFQFN Exposed Pad package.
