Microchip Technology DSC2033FE2-F0010
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | DSC2033 |
| Packaging | | |
| Type | Clock Generator |
| PLL | Yes |
| Input | - |
| Output | LVDS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 0:2 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 124.2MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.25V ~ 3.6V |
| Operating Temperature | -20°C ~ 70°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

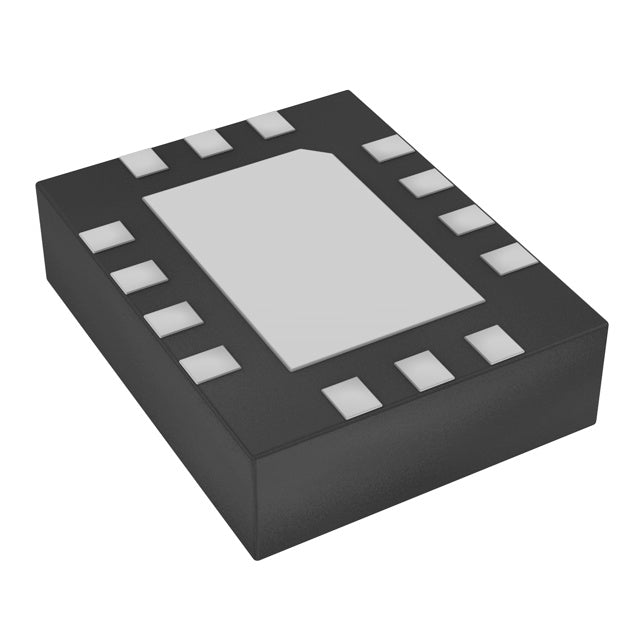

| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | 14-QFN (3.2x2.5) |
| ROHS |  |
The Microchip DSC2033FE2-F0010 is a Clock Generator with an integrated PLL, delivering a single LVDS output at 124.2MHz. It operates from -20°C to 70°C and is housed in a compact 14-VFQFN package. Ideal for audio/video, telecom, and medical applications requiring low-jitter, high-frequency timing.
- Low-jitter LVDS output for high-speed signal integrity.
- Integrated PLL for precise frequency generation.
- Compact 14-VFQFN package for space-saving designs.
- Reliable operation from -20°C to 70°C for commercial applications.
Audio/Video Synchronization
Generate 124.2MHz LVDS clocks for professional audio/video equipment, ensuring precise synchronization for broadcast and production.
Telecom Line Cards
Provide low-jitter clocks for telecom line cards, supporting high-speed data transmission and signal integrity.
Medical Imaging Systems
Deliver stable timing for MRI and ultrasound systems, ensuring accurate image capture and processing.
Test Equipment
Use the clock generator in signal generators and analyzers, providing reliable reference clocks for measurement accuracy.
Data Acquisition Systems
Generate precise clocks for high-speed ADCs and DACs, improving sampling accuracy and reducing noise.
- Q: What type of device is the DSC2033FE2-F0010?
- A: It is a Clock Generator from Microchip Technology.
- Q: Does this device include a PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL).
- Q: What is the output type?
- A: The output type is LVDS.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 124.2MHz.
- Q: What is the operating temperature range and package?
- A: It operates from -20°C to 70°C and comes in a 14-VFQFN Exposed Pad package.
