Microchip Technology DSC2130FI2-C0005
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | DSC2130 |
| Packaging | | |
| Type | Clock Generator |
| PLL | Yes |
| Input | - |
| Output | LVDS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 0:1 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 315MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 2.25V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

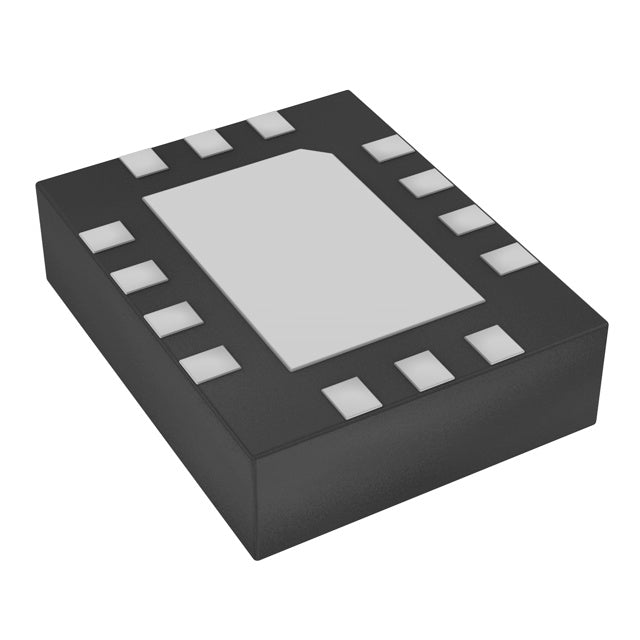

| Package / Case | 14-VFQFN Exposed Pad |
| Supplier Device Package | 14-QFN (3.2x2.5) |
| ROHS |  |
The Microchip DSC2130FI2-C0005 is a clock generator with an integrated PLL, delivering a single LVDS output at frequencies up to 315MHz. This device is designed for space-constrained applications, housed in a compact 14-VFQFN package. It is ideal for networking, telecom, and industrial systems requiring reliable, low-jitter clock generation.
- Integrated PLL: Provides flexible clock synthesis from a single device.
- LVDS Output: Ensures low noise and high-speed signal integrity.
- Compact Package: 14-VFQFN saves board space in dense designs.
- Wide Temperature Range: Operates from -40°C to 85°C for industrial use.
Networking Equipment
Generate low-jitter LVDS clocks for switches and routers, ensuring reliable data transmission at 315MHz.
Processor Clocking
Provide a stable clock source for microprocessors and FPGAs, supporting high-speed digital logic.
Telecom Infrastructure
Deliver precise timing for base stations and communication systems, maintaining synchronization.
Industrial Control
Supply accurate clocks for industrial automation and control systems, improving operational efficiency.
Test and Measurement
Provide a reference clock for test equipment, ensuring accurate frequency generation and measurement.
Data Acquisition
Generate clocks for high-speed data converters, enabling precise sampling and signal processing.
- Q: What type of device is the DSC2130FI2-C0005?
- A: It is a Clock Generator with PLL support (Yes).
- Q: What is the output type?
- A: The output type is LVDS.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 315MHz.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 85°C.
- Q: What is the package type?
- A: 14-VFQFN Exposed Pad.
