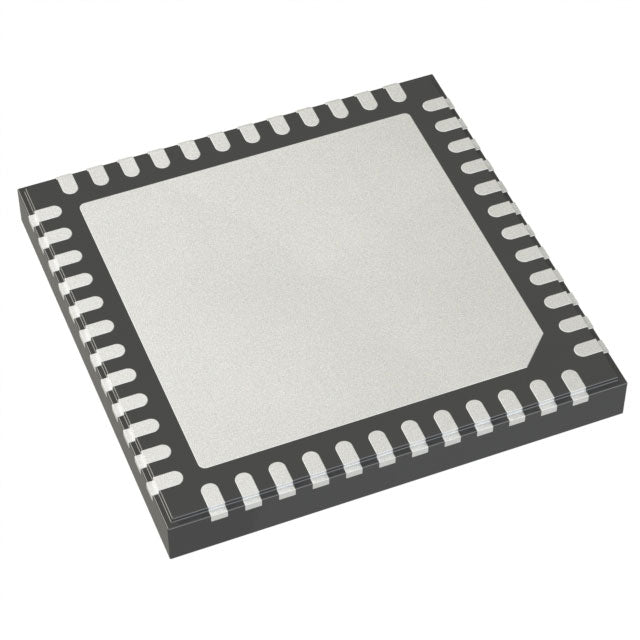

Microchip Technology DSPIC33CK1024MP705-E/M7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.27 | $5.27 |
| 15+ | $5.11 | $76.65 |
| 25+ | $5.00 | $125.00 |
| 50+ | $4.72 | $236.00 |
| 100+ | $4.16 | $416.00 |
| N+ | $0.83 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | dsPIC® 33CK |
| Packaging | Tube | Tube |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Speed | 100MIPs |
| Connectivity | CANbus, I2C, LINbus, QEI, SPI, Smart Card, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, QEI, WDT |
| Number of I/O | 39 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 19x12b SAR; D/A 6x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 48-VQFN (6x6) |
| Package / Case | 48-VFQFN Exposed Pad |
| ROHS |  |
The Microchip DSPIC33CK1024MP705-E/M7 is a high-performance digital signal controller in a compact 48-pin QFN package. It delivers 100 MIPs, 1MB of flash, and 128KB of RAM. Designed for extreme temperatures, it is ideal for advanced motor control and power conversion in automotive and industrial applications.
- High MIPs in Small Package: 100 MIPs performance in a 48-QFN for compact designs.
- Extended Temperature Range: Operates reliably from -40°C to 125°C.
- Large Memory: 1MB flash and 128KB RAM for complex firmware.
- Integrated Motor Control: PWM and QEI peripherals simplify motor drive designs.
- Low Power Consumption: Efficient operation for power-sensitive applications.
Compact Motor Drives
The 48-pin package with full motor control peripherals is ideal for space-constrained variable speed drives.
Automotive Thermal Management
Control pumps and fans in EV thermal management systems, using the 125°C rating for under-hood reliability.
Industrial Pumps and Compressors
Implement efficient, sensorless FOC control for pumps and compressors in industrial settings.
Power Tools
Drive high-power BLDC motors in cordless and corded power tools with the high MIPs and robust PWM.
Drones and UAVs
Manage propulsion motors and flight control algorithms in a compact form factor.
Smart Agriculture
Control irrigation pumps and automated machinery in harsh outdoor environments.
- Q: What is the RAM size of this MCU?
- A: It has 128KB of RAM.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 125°C.
- Q: What package is this available in?
- A: It comes in a 48-VFQFN exposed pad package.
- Q: Does it have a motor control PWM?
- A: Yes, it includes dedicated Motor Control PWM modules.
- Q: What is the core speed?
- A: The dsPIC core operates at up to 100 MIPs.
