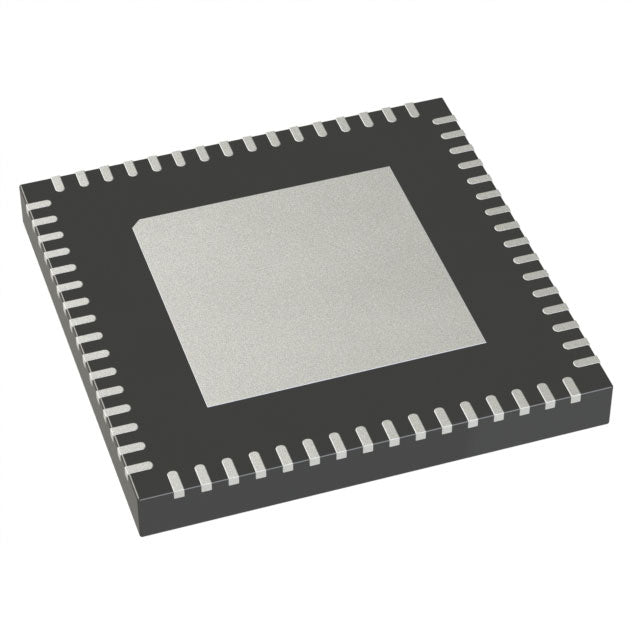

Microchip Technology DSPIC33CK1024MP706-E/MR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $5.51 | $5.51 |
| 15+ | $5.34 | $80.10 |
| 25+ | $5.22 | $130.50 |
| 50+ | $4.93 | $246.50 |
| 100+ | $4.35 | $435.00 |
| N+ | $0.87 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | dsPIC® 33CK |
| Packaging | Tube | Tube |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Speed | 100MIPs |
| Connectivity | CANbus, I2C, LINbus, QEI, SPI, Smart Card, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, QEI, WDT |
| Number of I/O | 54 |
| Program Memory Size | 1MB (1M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 20x12b SAR; D/A 6x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-QFN (9x9) |
| Package / Case | 64-VFQFN Exposed Pad |
| ROHS |  |
The Microchip DSPIC33CK1024MP706-E/MR is a powerful 16-bit digital signal controller designed for advanced embedded control. It features a 100 MIPs dsPIC core, 1MB of flash memory, and 128KB of RAM. This MCU integrates specialized peripherals for motor control, digital power, and audio, making it a versatile solution for demanding applications. Its extended temperature range ensures reliable performance in industrial settings.
- Real-Time Control: 100 MIPs execution speed ensures tight loop timing for critical applications.
- Extensive Memory: 1MB flash provides ample space for complex firmware.
- Advanced Peripherals: Integrated Motor Control PWM, QEI, and I2S reduce external component count.
- Robust Design: Operates reliably from -40°C to 125°C with built-in supervision features.
High-Performance Drives
Leverage the 100 MIPs dsPIC core and dedicated PWM for high-bandwidth current control loops in servo and spindle drives.
Power Inverters
Use the high-resolution PWM to generate precise switching signals for solar inverters and UPS systems, improving efficiency.
Industrial Automation
Implement complex motion control with QEI feedback and fast processing for PLC and CNC machinery.
Automotive Actuators
Control solenoids and valves with the PWM and monitor system health with WDT and Brown-out Reset in harsh automotive environments.
Medical Pumps
Ensure precise and reliable pump control with the deterministic interrupt response and robust peripheral set.
Smart Grid Devices
Manage power metering and communication with the DMA and I2S interfaces, enabling efficient data handling.
- Q: What is the core architecture of this device?
- A: It uses the dsPIC 16-bit digital signal controller core.
- Q: What is the maximum clock speed?
- A: It operates at up to 100 MIPs.
- Q: How much flash memory is available?
- A: It has 1MB of program flash memory.
- Q: What are the key motor control features?
- A: It includes Motor Control PWM and QEI modules for advanced motor control.
- Q: What is the package type?
- A: It is available in a 64-VFQFN exposed pad package.
