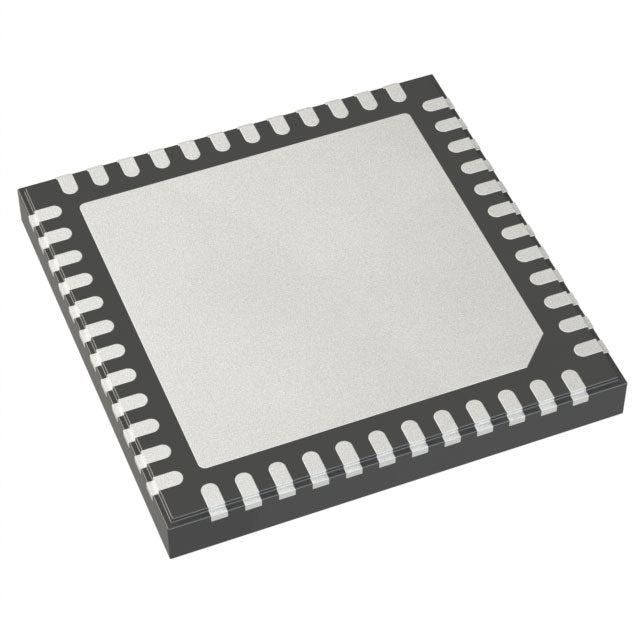

Microchip Technology DSPIC33CK256MP405T-I/M7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 15.32 | Dhs. 15.32 |
| 15+ | Dhs. 14.82 | Dhs. 222.30 |
| 25+ | Dhs. 14.50 | Dhs. 362.50 |
| 50+ | Dhs. 13.69 | Dhs. 684.50 |
| 100+ | Dhs. 12.08 | Dhs. 1,208.00 |
| N+ | Dhs. 2.42 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | dsPIC® 33CK |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Speed | 100MIPs |
| Connectivity | I2C, LINbus, QEI, SPI, Smart Card, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, I2S, Motor Control PWM, POR, PWM, QEI, WDT |
| Number of I/O | 89 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 19x12b SAR; D/A 6x12b |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 48-VQFN (6x6) |
| Package / Case | 48-VFQFN Exposed Pad |
| ROHS |  |
DSPIC33CK256MP405T-I/M7 - High-Performance 16-Bit Digital Signal Controller
The DSPIC33CK256MP405T-I/M7 from Microchip Technology is a powerful 16-bit digital signal controller (DSC) from the dsPIC® 33CK family, engineered for demanding embedded applications requiring high computational performance and advanced motor control capabilities.
Key Features & Benefits
- 100 MIPS Performance: Delivers exceptional processing power for real-time control and signal processing applications
- 256KB Flash Memory: Ample program storage for complex firmware and application code
- 128KB RAM: Sufficient data memory for buffering and computational tasks
- 89 I/O Pins: Extensive GPIO for interfacing with sensors, actuators, and peripherals
- Advanced Peripherals: Integrated motor control PWM, QEI, DMA, I2S, and watchdog timer
- Rich Connectivity: I2C, SPI, UART/USART, LINbus, and Smart Card interfaces
- High-Resolution ADC/DAC: 19 channels of 12-bit SAR ADC and 6 channels of 12-bit DAC
- Industrial Temperature Range: Operates reliably from -40°C to 85°C
- Compact Package: 48-VQFN (6x6mm) with wettable flank for enhanced solderability
- RoHS Compliant: Environmentally friendly and meets global regulatory standards
Ideal Applications
This microcontroller is perfectly suited for:
- Motor control systems (BLDC, PMSM, stepper motors)
- Industrial automation and process control
- Power conversion and inverter applications
- Automotive body electronics and sensors
- IoT edge devices and smart sensors
- Medical instrumentation and diagnostic equipment
- Consumer appliances with advanced control requirements
Why Choose HQICKEY?
At HQICKEY, we guarantee 100% authentic components sourced directly from authorized distributors. Every DSPIC33CK256MP405T-I/M7 comes with full traceability, quality assurance, and long-term availability commitment to support your product lifecycle.
Technical Resources & Support
Access comprehensive datasheets, application notes, and development tools to accelerate your design process. Our technical team is ready to assist with product selection, design-in support, and volume pricing.
