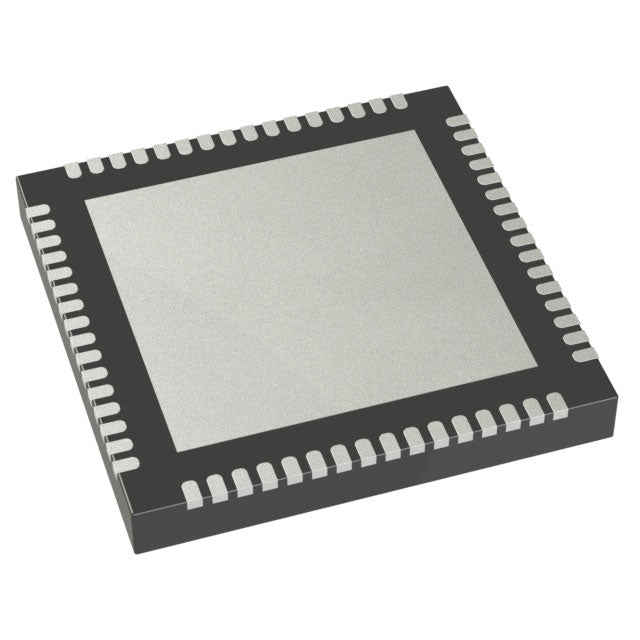

Microchip Technology DSPIC33EV128GM106-E/MR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | dsPIC™ 33EV, Functional Safety (FuSa) |
| Packaging | | Tube |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Speed | 60 MIPs |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 53 |
| Program Memory Size | 128KB (43K x 24) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 36x10/12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-VQFN (9x9) |
| Package / Case | 64-VFQFN Exposed Pad |
| ROHS |  |
The Microchip DSPIC33EV128GM106-E/MR is a 16-bit dsPIC DSC in a 64-VFQFN package, designed for high-temperature applications. It operates at 60 MIPs with 128KB flash and 8K RAM, supporting 4.5V-5.5V supplies. The device includes Motor Control PWM, DMA, and is rated for -40°C to +125°C, making it ideal for automotive and industrial control.
- Automotive Temperature Range: -40°C to +125°C for under-hood and industrial high-heat environments.
- Compact 64-QFN: High pin count in a small footprint for dense PCB layouts.
- 5V Operation: Simplifies interfacing with 5V automotive and industrial peripherals.
- 60 MIPs DSP: Balances performance and power for real-time control.
- Motor Control PWM + DMA: Efficiently handles multi-motor control with minimal CPU load.
Automotive Transmission Control
Use the 64-pin QFN and 125°C rating for transmission control units, managing solenoids and sensors with the motor control PWM.
Industrial Robotics (High Temp)
Control joint motors in welding robots where heat from the process raises ambient temperature, using the 60 MIPs core for trajectory planning.
Electric Power Steering
Implement torque assist algorithms with the DSP engine and drive the BLDC motor with high-resolution PWM in a compact package.
HVAC Compressor Drives
Drive variable-speed compressors in rooftop units exposed to extreme temperatures, leveraging the 5V I/O for direct sensor connection.
Marine Electronics
Withstand high engine room temperatures and use the DMA for efficient data logging from multiple sensors.
Railway Auxiliary Converters
Manage auxiliary power supplies in locomotives where temperature and vibration are extreme, using the robust 5V design.
- Q: What is the package?
- A: 64-VFQFN exposed pad.
- Q: What is the max speed?
- A: 60 MIPs.
- Q: What is the temperature range?
- A: -40°C to +125°C.
- Q: What is the flash size?
- A: 128KB (43K x 24).
- Q: Does it support DMA?
- A: Yes, includes DMA controller.
