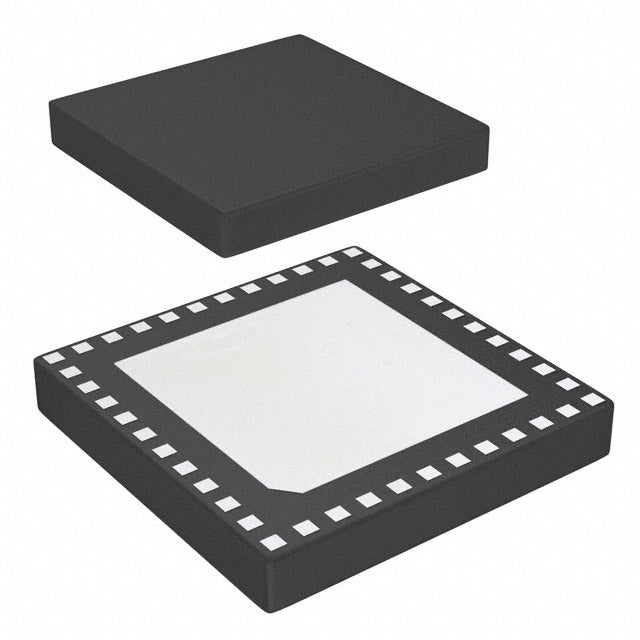

Microchip Technology DSPIC33FJ16GS504-E/TL
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,870.06 | Dhs. 355,870.06 |
| 15+ | Dhs. 344,632.06 | Dhs. 5,169,480.90 |
| 25+ | Dhs. 337,140.05 | Dhs. 8,428,501.25 |
| 50+ | Dhs. 318,410.05 | Dhs. 15,920,502.50 |
| 100+ | Dhs. 280,950.05 | Dhs. 28,095,005.00 |
| N+ | Dhs. 56,190.01 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | dsPIC™ 33F |
| Packaging | | Tube |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Speed | 40 MIPs |
| Connectivity | I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 35 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 24x10b; D/A 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 44-VTLA (6x6) |
| Package / Case | 44-VFTLA Exposed Pad |
| ROHS |  |
DSPIC33FJ16GS504-E/TL - Automotive-Grade 16-Bit DSP Microcontroller
The DSPIC33FJ16GS504-E/TL from Microchip Technology is a high-performance, automotive-qualified 16-bit Digital Signal Controller (DSC) that combines the control advantages of a microcontroller with the computational power of a DSP. Engineered for demanding embedded and industrial applications, this AEC-Q100 qualified device delivers 40 MIPS performance with advanced peripherals and robust connectivity options.
Key Features & Benefits
- High Performance: 40 MIPS processing speed with 16-bit dsPIC core for real-time control and signal processing
- Automotive Grade: AEC-Q100 qualified for extended temperature range (-40°C to 125°C) and harsh environments
- Rich Connectivity: I²C, IrDA, LINbus, SPI, and UART/USART interfaces for versatile system integration
- Advanced Analog: 24 channels of 10-bit ADC and 4 channels of 10-bit DAC for precision measurement and control
- Flexible I/O: 35 general-purpose I/O pins for comprehensive peripheral interfacing
- Integrated Protection: Brown-out detect/reset, power-on reset, PWM, and watchdog timer for system reliability
- Compact Package: 44-VTLA (6x6mm) surface mount package with exposed pad for enhanced thermal performance
- Low Power Operation: Optimized power consumption with multiple sleep modes for battery-powered applications
- Flash Memory: 16KB Flash program memory with in-circuit programming capability for easy updates
- Enhanced RAM: 2KB RAM for efficient data processing and buffering
Ideal Applications
Perfect for automotive motor control, power conversion, sensor interfacing, industrial automation, medical devices, and embedded control systems requiring DSP capabilities with microcontroller integration. The DSPIC33FJ16GS504-E/TL excels in applications demanding real-time signal processing, including electric power steering, HVAC control, battery management systems, and precision motor drives.
Technical Advantages
This DSC combines the best of both worlds: the deterministic, interrupt-driven control of a microcontroller with the math-intensive processing power of a DSP. The dsPIC33F architecture features a modified Harvard architecture with enhanced instruction set, hardware multiplier, and barrel shifter for efficient DSP operations. With its automotive qualification and extended temperature range, this component ensures reliable operation in the most demanding environments.
