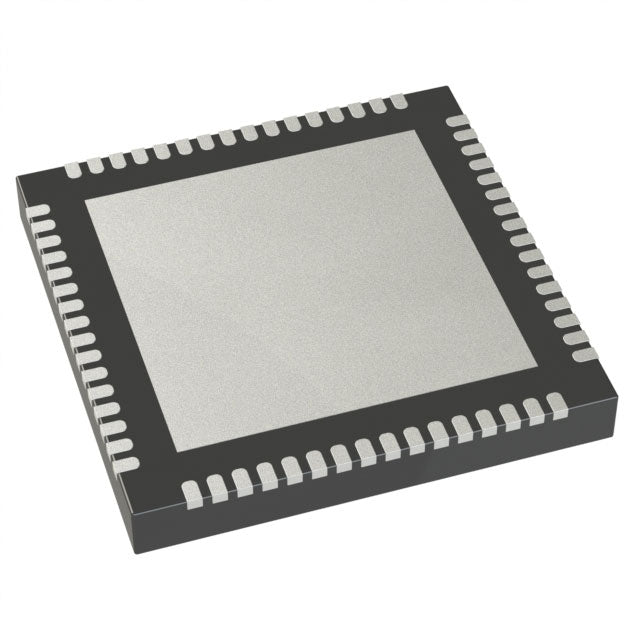

Microchip Technology DSPIC33FJ64MC706AT-I/MR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | dsPIC™ 33F |
| Packaging | | Tape & Reel (TR) |
| Core Processor | dsPIC |
| Core Size | 16-Bit |
| Speed | 40 MIPs |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT |
| Number of I/O | 53 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 16x10b/12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-VQFN (9x9) |
| Package / Case | 64-VFQFN Exposed Pad |
| ROHS |  |
The Microchip DSPIC33FJ64MC706AT-I/MR is a high-performance 16-bit digital signal controller designed for demanding motor control and power conversion applications. Featuring a 40 MIPs dsPIC core, it combines the real-time control of a microcontroller with the computational power of a DSP. With 64KB of flash memory and 16K x 8 RAM, it provides ample resources for complex algorithms. Its integrated Motor Control PWM, QEI, and DMA peripherals enable efficient and precise system control in a compact 64-VFQFN package.
- High-Speed 40 MIPs Processing: Enables complex real-time control algorithms like FOC and sensorless control.
- Integrated Motor Control Peripherals: Dedicated PWM and QEI modules reduce external components and simplify design.
- DMA Controller: Allows data transfer without CPU intervention, freeing processing power for other tasks.
- Robust Protection Features: Includes Brown-out Reset, Power-on Reset, and Watchdog Timer for reliable operation.
Field-Oriented Control (FOC) of PMSM Motors
Utilize the high-speed 40 MIPs dsPIC core and dedicated Motor Control PWM to execute complex FOC algorithms with high precision and low latency.
Brushless DC (BLDC) Motor Drives
The integrated QEI (Quadrature Encoder Interface) and PWM modules simplify sensor-based and sensorless BLDC control, reducing external component count.
Industrial AC Induction Motor Drives
With DMA and fast ADC, the MCU can handle real-time current sensing and voltage vector modulation for efficient VFD (Variable Frequency Drive) control.
Power Conversion (SMPS & Inverters)
High-resolution PWM and fast interrupt response enable precise control for switch-mode power supplies and DC-AC inverters, improving efficiency.
Robotics and Servo Control
Combine the DSP engine with QEI for accurate position feedback and PWM for torque control, enabling smooth and precise servo motion.
Automotive Actuator Control
Operates reliably in -40°C to 85°C environments, making it suitable for engine cooling fans, pumps, and other automotive actuators.
- Q: What is the core speed of the DSPIC33FJ64MC706AT-I/MR?
- A: It operates at 40 MIPs, enabling high-performance real-time control.
- Q: What is the program memory size?
- A: It has 64KB (64K x 8) of flash program memory.
- Q: Does it support motor control applications?
- A: Yes, it includes dedicated Motor Control PWM and QEI modules.
- Q: What is the operating voltage range?
- A: It operates from 3V to 3.6V.
- Q: What package is available?
- A: It comes in a 64-VFQFN exposed pad package.
