EFM32TG110F16-QFN24

Silicon Labs EFM32TG110F16-QFN24 - Ultra-Low-Power ARM Cortex-M3 Microcontroller

The EFM32TG110F16-QFN24 is a high-performance 32-bit ARM® Cortex®-M3 microcontroller from Silicon Labs' renowned Tiny Gecko series, specifically engineered for ultra-low-power embedded applications. Operating at 32MHz with 16KB Flash memory and 4KB RAM, this MCU delivers exceptional energy efficiency perfect for battery-powered IoT devices, wearables, and industrial sensors.

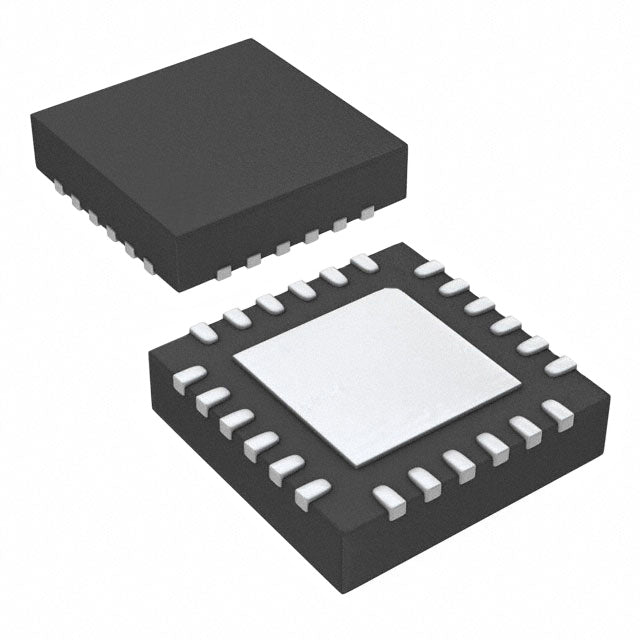

Featuring 17 I/O pins in a compact 24-QFN (5x5mm) surface-mount package, the EFM32TG110F16 integrates essential peripherals including I2C, SPI, UART/USART, and SmartCard interfaces. Advanced analog capabilities include 2x12-bit ADC and 1x12-bit DAC converters, while built-in DMA, PWM, and watchdog timer enhance system reliability and performance.

With an ultra-wide voltage range (1.85V-3.8V) and industrial temperature rating (-40°C to 85°C), this microcontroller ensures robust performance across demanding environments. RoHS compliant and supplied in tape & reel packaging, it's ideal for production-scale deployment in energy-harvesting systems, smart meters, portable medical devices, and wireless sensor networks.

Advanced Power Management & Energy Efficiency

The EFM32TG110F16 excels in ultra-low-power operation with multiple energy modes optimized for battery-powered applications. The ARM Cortex-M3 core delivers 1.25 CoreMark/MHz efficiency while consuming as low as 180 µA/MHz in active mode and less than 1 µA in deep sleep mode. Energy Mode 0 (EM0) provides full CPU and peripheral operation, while EM1-EM4 progressively reduce power consumption by selectively disabling peripherals and clocks. The integrated Energy Management Unit (EMU) enables intelligent power mode transitions, extending battery life in coin-cell and energy-harvesting applications by up to 10x compared to traditional microcontrollers.

Rich Peripheral Integration & Connectivity

This microcontroller features a comprehensive peripheral set designed for industrial and IoT applications. The dual 12-bit 1 Msps ADC channels support differential and single-ended measurements with programmable gain amplifier (PGA), enabling precision sensor interfacing for temperature, pressure, and analog signal monitoring. The 12-bit DAC provides accurate analog output for control systems and audio applications. Communication interfaces include two USART modules supporting UART, SPI, and SmartCard protocols, plus I2C for multi-device bus communication. The Low Energy UART (LEUART) operates independently in sleep modes, enabling asynchronous data reception while maintaining ultra-low power consumption. Built-in DMA controller offloads CPU tasks, reducing active power consumption during data transfers.

Development Ecosystem & Design Support

Silicon Labs provides comprehensive development tools and resources for the EFM32TG110F16, including Simplicity Studio IDE with integrated debugger, energy profiler, and code configurator. The platform supports ARM CMSIS standards and includes optimized peripheral libraries (emlib) for rapid firmware development. Hardware development kits and starter kits enable quick prototyping with on-board debugger, sensors, and expansion headers. The microcontroller is compatible with industry-standard ARM Cortex-M3 toolchains including Keil MDK, IAR Embedded Workbench, and GCC-based solutions. Extensive application notes, reference designs, and community support accelerate time-to-market for embedded system developers working on battery-powered, space-constrained applications.
