Altera EPXA10F1020C3

Altera EPXA10F1020C3 Excalibur™ FPSLIC - High-Performance Embedded System Solution

The EPXA10F1020C3 from Altera's Excalibur™ series combines a powerful 32-bit ARM9 processor core with 1 million FPGA gates, delivering exceptional flexibility for embedded system designs requiring both processing power and programmable logic. This Field Programmable System Level Integrated Circuit (FPSLIC) offers unmatched versatility for complex embedded applications.

Key Features & Benefits:

• Dual Architecture Performance: 32-bit ARM9 RISC processor core running at 166 MHz paired with 38,400 FPGA core cells (1M gates equivalent) for maximum design flexibility
• Generous Memory Resources: 256KB program SRAM and 128KB data SRAM provide robust support for demanding applications
• Versatile Connectivity: EBI/EMI (External Bus Interface/External Memory Interface) and UART/USART serial communication options
• Industrial-Grade Reliability: Operating temperature range of 0°C to 85°C with 1.8V supply voltage for harsh environments

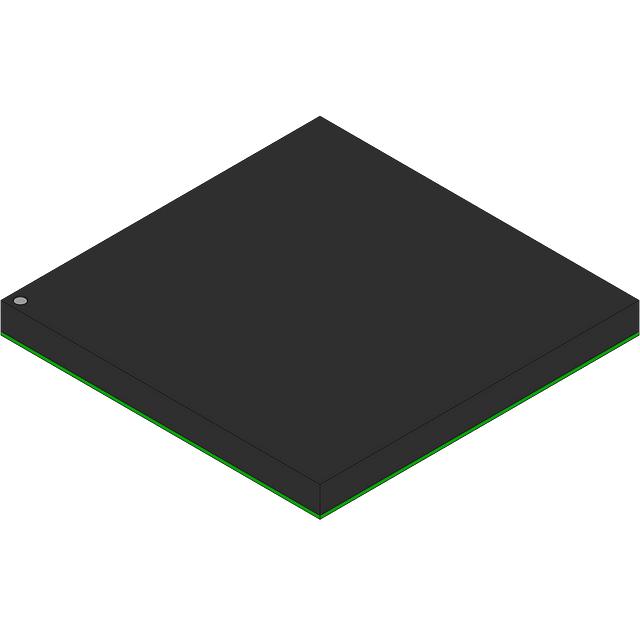

• Space-Efficient Design: Compact 1020-FBGA (33x33mm) package optimizes board space utilization
• Reconfigurable Logic: FPGA fabric allows for custom hardware acceleration and peripheral implementation

Ideal Applications:

The EPXA10F1020C3 is perfectly suited for:

• Industrial control and automation systems
• Embedded computing platforms requiring hardware acceleration
• Telecommunications and networking equipment
• Complex digital signal processing (DSP) applications
• Motor control and robotics
• Medical instrumentation and imaging systems
• Aerospace and defense embedded systems

Why Choose Excalibur FPSLIC?

Excalibur devices eliminate the need for separate microprocessor and FPGA components, reducing board complexity, power consumption, and overall system cost. The tight integration between the ARM9 core and FPGA fabric enables high-bandwidth communication and efficient hardware-software partitioning for optimal performance.

Quality & Authenticity Guarantee:

We supply only genuine Altera components sourced directly from authorized distributors. Each EPXA10F1020C3 device comes with full traceability and manufacturer warranty support.

All specifications are subject to manufacturer's datasheet. Contact us for current availability, volume pricing, and technical support.

• EPXA10F1020C3.pdf
