ETEK MICROELECTRONICS ET553ADJY2B
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.12 | $0.12 |
| 15+ | $0.12 | $1.80 |
| 25+ | $0.12 | $3.00 |
| 50+ | $0.11 | $5.50 |
| 100+ | $0.10 | $10.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | ETEK MICROELECTRONICS |
| Product Series | ET553XX |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 3.6V |
| Voltage Dropout (Max) | 0.9V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 85 µA |
| Current - Supply (Max) | - |
| PSRR | 80dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

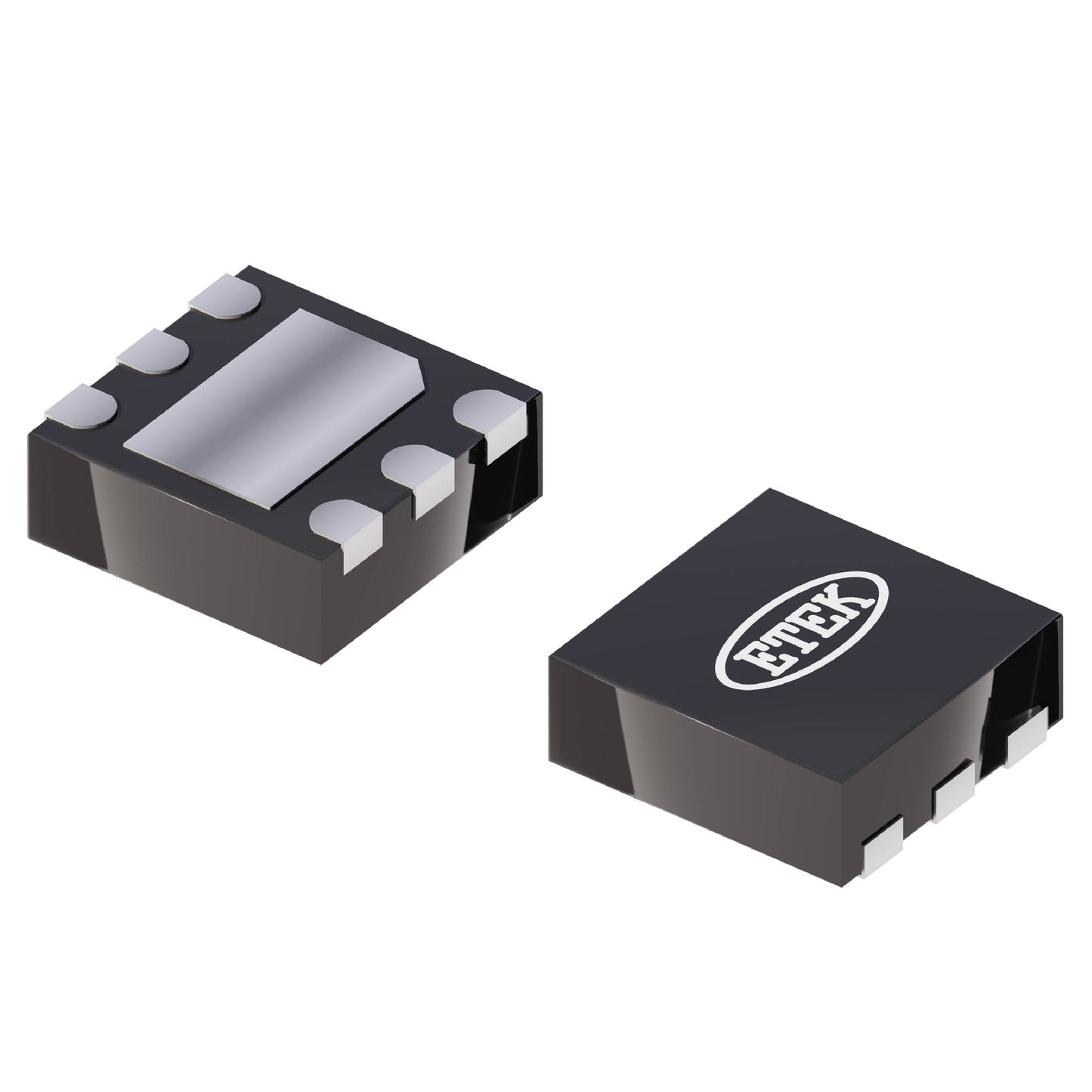

| Package / Case | 6-DFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The ETEK ET553ADJY2B is an adjustable LDO linear regulator capable of delivering 500mA. It features a typical output of 3.6V (set by external resistors) and a dropout of 0.9V at full load. The quiescent current is 85 µA. Housed in a 6-DFN (2x2mm) package, it offers high PSRR (80dB at 1kHz) for clean power in adjustable supply applications.
- Adjustable Output: Flexible voltage setting via external resistors.
- High Current: 500mA for power-hungry loads.
- High PSRR: 80dB at 1kHz for noise-sensitive circuits.
- Wide Input Range: Operates from 1V, suitable for low-voltage sources.
Adjustable Power Supplies
External resistor divider allows setting output from 1V to 3.6V, providing flexibility for prototyping and custom rails.
Battery Chargers
500mA capacity and adjustable output make it suitable for charging Li-ion cells with precise voltage control.
LED Drivers
Constant voltage output can drive LED strings with series resistors, with 80dB PSRR at 1kHz reducing flicker.
FPGA Core Supplies
Adjustable output matches different FPGA core voltages (1.0V, 1.2V, 1.8V) with 500mA current capability.
Test and Measurement
Provides clean, adjustable reference voltage for bench instruments, with low noise and high PSRR.
Automotive ECUs
Wide input range and adjustable output suit multi-rail automotive systems, with 85µA Iq for always-on modules.
- Q: What is the output voltage of the ET553ADJY2B?
- A: The ET553ADJY2B is an adjustable LDO with a typical output of 3.6V (set by external resistors).
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 1V up to the absolute maximum rating (typically 6V).
- Q: What is the dropout voltage?
- A: Dropout is 0.9V at 500mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 85 µA.
- Q: What package is available?
- A: It comes in a 6-DFN (2x2mm) package.
