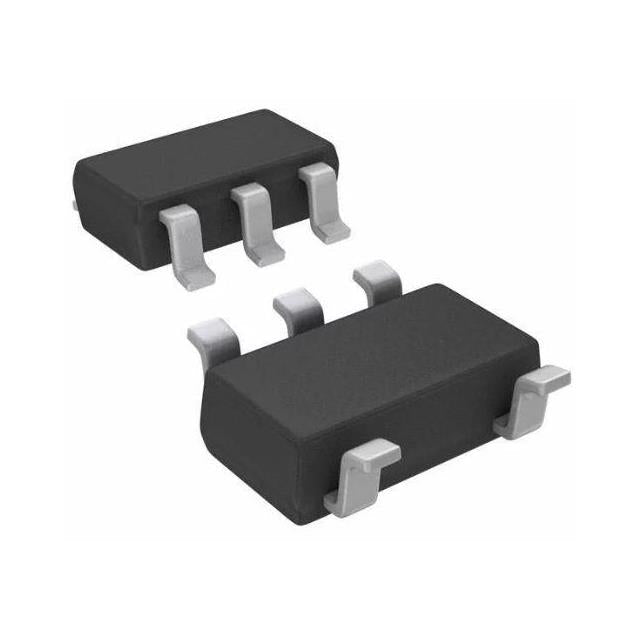

ETEK MICROELECTRONICS ET5H130
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.10 | $0.10 |
| 15+ | $0.09 | $1.35 |
| 25+ | $0.09 | $2.25 |
| 50+ | $0.09 | $4.50 |
| 100+ | $0.08 | $8.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | ETEK MICROELECTRONICS |
| Product Series | ET5H1XX |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.96V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 3 µA |
| Current - Supply (Max) | - |
| PSRR | 55dB (1kHz) |
| Control Features | - |
| Protection Features | Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The ET5H130 is a fixed 3.0V LDO regulator from ETEK Microelectronics, offering 150mA output current. With a low quiescent current of 3 µA and a dropout voltage of 0.96V at full load, it is well-suited for battery-powered applications where efficiency and stability are key. The SOT-23-5 package provides a practical, space-saving solution for a wide range of electronic devices.
- Efficient Operation: 3 µA quiescent current minimizes power loss in battery-operated systems.
- Low Dropout: 0.96V dropout enables use with 3.7V Li-ion batteries down to 3.96V input.
- Good Noise Rejection: 55dB PSRR at 1kHz filters common power supply noise.
- Versatile Package: SOT-23-5 is easy to handle and widely supported by PCB design tools.
Battery-Powered Instruments
3.0V output with 0.96V dropout is ideal for 3.7V Li-ion batteries, providing stable power until near end-of-discharge.
Analog Sensor Interfaces
55dB PSRR at 1kHz ensures clean 3V rail for op-amps and ADC references in industrial sensors.
Portable GPS Modules
Stable 3.0V for GPS receivers, with low quiescent current extending battery life in handheld navigators.
Wireless Modules
150mA supports Zigbee or Thread modules, with 3.0V matching many RF IC requirements.
Medical Monitoring Devices
Reliable 3V for pulse oximeters and blood pressure monitors, ensuring consistent operation.
Consumer Gadgets
Used in digital cameras and MP3 players for 3V logic and display power.
- Q: What is the output voltage?
- A: The ET5H130 provides a fixed 3.0V output voltage.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA of current.
- Q: What is the dropout voltage?
- A: Dropout is 0.96V at 150mA, allowing operation from a 4.0V input with margin.
- Q: What is the quiescent current?
- A: Quiescent current is 3 µA, making it efficient for battery-powered designs.
- Q: What is the PSRR?
- A: PSRR is 55dB at 1kHz, providing good noise rejection.
- Q: What is the package?
- A: It comes in a SOT-23-5 package.
