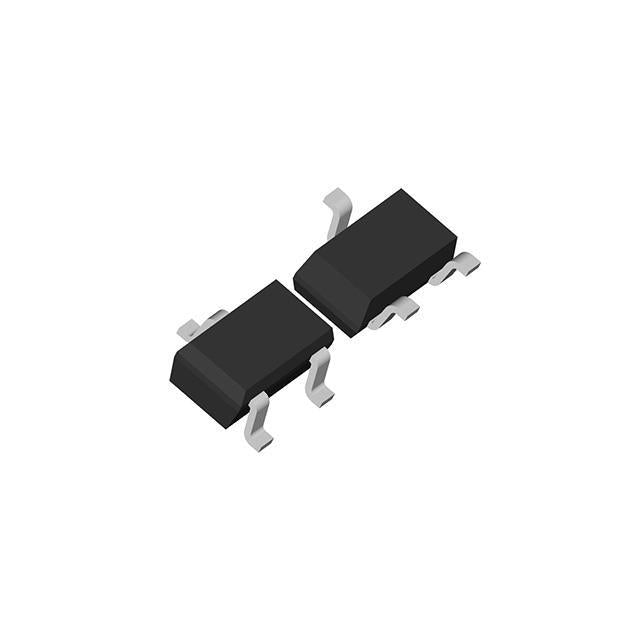

ETEK MICROELECTRONICS ET5H233S
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.14 | $0.14 |
| 15+ | $0.14 | $2.10 |
| 25+ | $0.14 | $3.50 |
| 50+ | $0.13 | $6.50 |
| 100+ | $0.11 | $11.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | ETEK MICROELECTRONICS |
| Product Series | ET5H2XX |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.3V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 4.5 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| ROHS |  |
The ET5H233S is a fixed 3.3V low dropout linear regulator from ETEK Microelectronics, offering 300mA output current in a compact SOT-23-3 package. Its ultra-low 4.5 µA quiescent current makes it ideal for battery-powered and always-on applications. With a dropout voltage of 1.3V at full load, it provides reliable regulation for a wide range of low-power electronics.
- Ultra-Low Quiescent Current: 4.5 µA extends battery life in standby and always-on applications.
- 300mA Output: Supports a wide range of low-power microcontrollers and sensors.
- Minimalist SOT-23-3: Only 3 pins simplify PCB layout and reduce component count.
- Stable 3.3V Rail: Fixed output ensures compatibility with standard 3.3V logic.
Coin-Cell Battery Devices
The ultra-low 4.5 µA quiescent current is perfect for coin-cell-powered devices like remote controls and key fobs, extending battery life to years.
Always-On Domains
In automotive and industrial systems, the ET5H233S maintains a 3.3V rail for always-on real-time clocks and memory, with minimal power draw.
Simple 3-Pin Replacements
The SOT-23-3 package offers a drop-in replacement for older 3-pin regulators, upgrading efficiency with lower quiescent current.
Low-Power Microcontrollers
With 300mA output, it powers low-power MCUs like MSP430 or STM32L series, providing stable 3.3V for logic and I/O.
Portable Instruments
Handheld multimeters and thermometers benefit from the low quiescent current and compact package, enabling longer operation between charges.
- Q: What is the output voltage of the ET5H233S?
- A: The ET5H233S provides a fixed 3.3V output.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the official datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.3V at a 300mA load.
- Q: What is the quiescent current?
- A: The quiescent current is a low 4.5 µA.
- Q: What package is available?
- A: The ET5H233S is available in a SOT-23-3 package.
