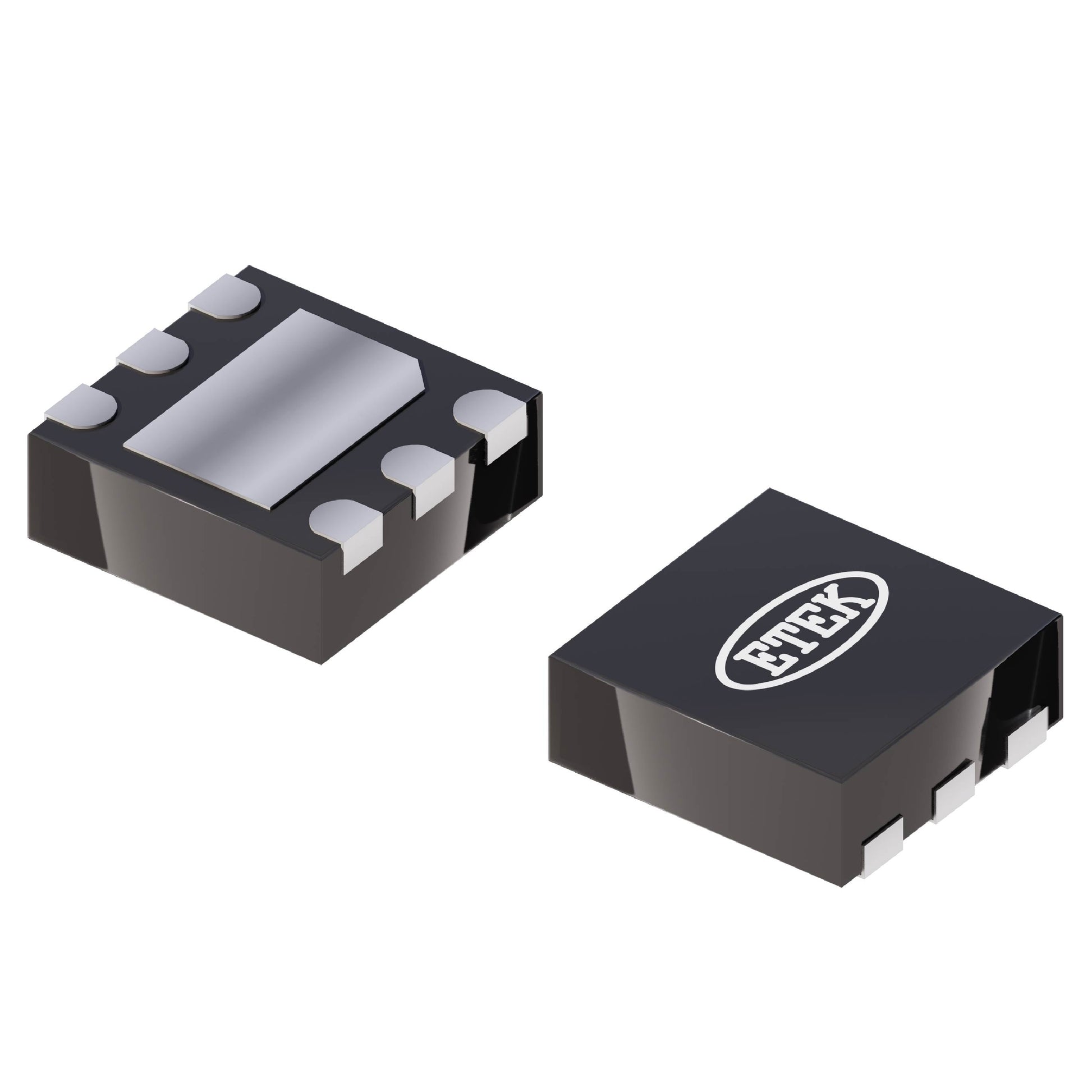

ETEK MICROELECTRONICS ET5H6ADJY
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.27 | $0.27 |
| 15+ | $0.26 | $3.90 |
| 25+ | $0.25 | $6.25 |
| 50+ | $0.24 | $12.00 |
| 100+ | $0.21 | $21.00 |
| N+ | $0.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | ETEK MICROELECTRONICS |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 24V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.95V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 80 µA |
| Current - Supply (Max) | - |
| PSRR | 90dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The ET5H6ADJY from ETEK MICROELECTRONICS is a low dropout linear regulator offering a fixed 5V output and a maximum current of 300mA. With a low quiescent current of 80 µA and an excellent PSRR of 90dB at 1kHz, it is designed for noise-sensitive and battery-powered applications. The compact 6-DFN (2x2) package is ideal for space-constrained designs.
- High Ripple Rejection: 90dB PSRR at 1kHz ensures a clean output, ideal for audio and RF circuits.
- Low Power Consumption: The 80 µA quiescent current helps extend battery life in portable devices.
- Space-Saving Design: The 6-DFN (2x2) package is perfect for compact PCBs.
- Reliable 5V Rail: Provides a stable 5V output for a wide range of digital and analog ICs.
Industrial Sensors
Provide a stable 5V rail for industrial sensors and transducers, ensuring accurate readings in noisy environments thanks to the high 90dB PSRR.
Portable Instrumentation
The low 80 µA quiescent current and compact 6-DFN package make it suitable for handheld test and measurement equipment.
Automotive Electronics
Regulate power for automotive microcontrollers and interface circuits, benefiting from the robust 5V output and high ripple rejection.
Battery Management Systems
Use it to power monitoring ICs in battery packs, where low power consumption is critical for maintaining battery charge.
Audio Equipment
The high PSRR helps minimize power supply hum, making it a good choice for powering audio codecs and amplifiers.
- Q: What is the output voltage of the ET5H6ADJY?
- A: The output voltage is fixed at 5V.
- Q: What is the maximum output current?
- A: It can provide up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.95V at 300mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 80 µA.
- Q: What package is available?
- A: It comes in a 6-DFN (2x2) package.
