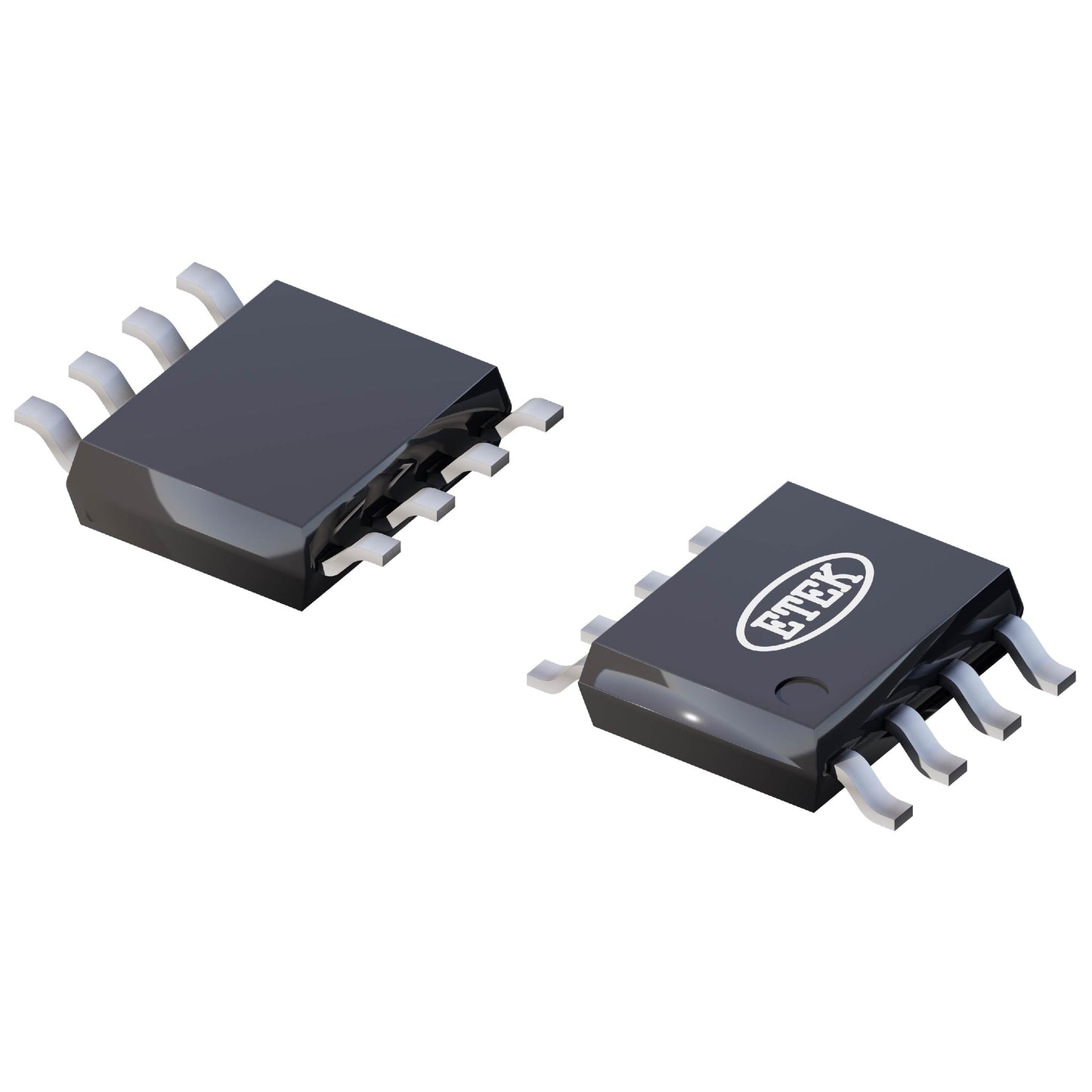

ETEK MICROELECTRONICS ET5HAADJEB
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.37 | $0.37 |
| 15+ | $0.36 | $5.40 |
| 25+ | $0.35 | $8.75 |
| 50+ | $0.33 | $16.50 |
| 100+ | $0.29 | $29.00 |
| N+ | $0.06 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | ETEK MICROELECTRONICS |
| Product Series | ET5HAXX |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 0.8V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 190 µA |
| Current - Supply (Max) | - |
| PSRR | 80dB ~ 65dB (1kHz ~ 1MHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-ESOP |
| ROHS |  |
The ET5HAADJEB from ETEK MICROELECTRONICS is a versatile adjustable low dropout linear regulator capable of delivering up to 1A of output current. With an adjustable output voltage range up to 20V (reference 0.6V), it offers excellent flexibility for various applications. The device features a low dropout voltage of 0.8V at 1A and a quiescent current of 190 µA. Its high PSRR of 80dB to 65dB (1kHz-1MHz) ensures superior noise rejection. Packaged in an 8-ESOP, it provides robust thermal performance for demanding applications.
- High Output Current: 1A capability supports power-hungry loads.
- Wide Adjustable Range: Output up to 20V provides design flexibility.
- Excellent Noise Rejection: PSRR up to 80dB ensures clean power for sensitive circuits.
- Low Dropout: 0.8V @ 1A minimizes power dissipation.
High-Voltage Power Supplies
With adjustable output up to 20V and 1A capability, this LDO is ideal for powering high-voltage analog circuits, op-amps, and industrial sensors.
Automotive Electronics
The 8-ESOP package and robust 1A output make it suitable for automotive infotainment systems, ECU power supplies, and LED drivers.
Industrial Control Systems
Provides clean, regulated power for PLCs, motor controllers, and factory automation equipment requiring stable voltage rails.
Telecommunications Equipment
High PSRR of 80dB to 65dB (1kHz-1MHz) ensures clean power for communication modules, reducing noise interference.
Test and Measurement Instruments
Adjustable output and low noise characteristics make it suitable for bench power supplies and precision measurement devices.
- Q: What is the output voltage of the ET5HAADJEB?
- A: The output voltage is adjustable, with a reference voltage of 0.6V.
- Q: What is the maximum output current?
- A: The maximum output current is 1A.
- Q: What is the input voltage range?
- A: The input voltage range is not explicitly specified, but the output can be set up to 20V.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.8V at 1A load.
- Q: What is the quiescent current?
- A: The quiescent current is 190 µA.
- Q: What package is available?
- A: The ET5HAADJEB comes in an 8-ESOP package.
