ETEK MICROELECTRONICS ET9515
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.30 | $0.30 |
| 15+ | $0.28 | $4.20 |
| 25+ | $0.27 | $6.75 |
| 50+ | $0.26 | $13.00 |
| 100+ | $0.23 | $23.00 |
| N+ | $0.05 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | ETEK MICROELECTRONICS |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant |
| Programmable Features | - |
| Fault Protection | Over Current, Over Temperature |
| Charge Current - Max | 1.1A |
| Battery Pack Voltage | 4.35V |
| Voltage - Supply (Max) | 28V |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

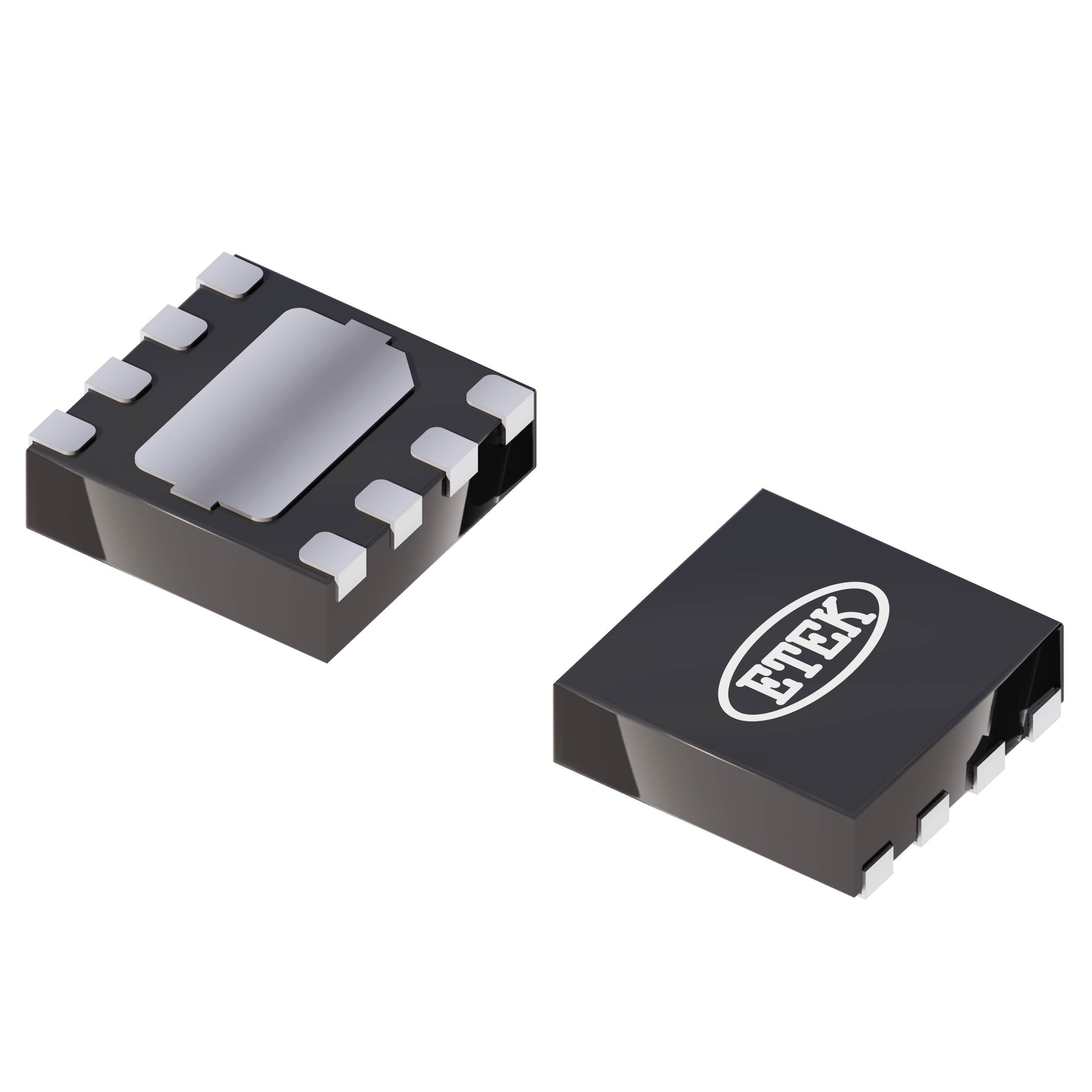

| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
The ET9515 is a linear battery charger designed for single-cell Lithium Ion batteries. It provides a charge current up to 1.1A and is configured for a 4.35V battery voltage. The device includes essential fault protection features such as Over Current and Over Temperature monitoring. Housed in an 8-WDFN Exposed Pad package, it operates over a -40°C to 85°C temperature range, making it a versatile choice for portable electronics.
- Fast Charging Capability: Supports up to 1.1A charge current, enabling quicker recharge cycles for modern Li-Ion cells.
- Integrated Safety: Built-in Over Current and Over Temperature protection ensures safe operation under fault conditions.
- High-Voltage Cell Support: Designed for 4.35V Li-Ion batteries, maximizing the usable capacity of newer cell technology.
- Compact Thermal Package: The 8-WDFN Exposed Pad package aids in heat dissipation, maintaining performance in tight spaces.
High-Capacity Smartphones
With a 1.1A charge current and 4.35V target, it is suitable for high-capacity single-cell Li-Ion batteries in modern smartphones, reducing charge time.
Tablets and Power Banks
Its robust charging capability supports the larger batteries found in compact tablets and slim power banks, ensuring efficient energy replenishment.
Portable Medical Equipment
The -40°C to 85°C temperature range allows for deployment in portable diagnostic tools that may be used in varied field conditions.
Industrial Handhelds
For rugged PDAs and barcode scanners, the over-current and over-temperature protections safeguard the battery and device during demanding use.
Digital Cameras
Provides a reliable charging solution for Li-Ion battery packs in digital cameras, ensuring consistent performance for photography enthusiasts.
- Q: What battery chemistry is the ET9515 for?
- A: It is designed for Lithium Ion batteries.
- Q: How many cells does it support?
- A: It supports a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.1A.
- Q: What is the target battery voltage?
- A: The battery voltage is 4.35V.
- Q: What fault protections are included?
- A: It includes Over Current and Over Temperature protection.
- Q: What is the package type?
- A: It comes in an 8-WDFN Exposed Pad package.
