onsemi FAN105AM6X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,880.72 | Dhs. 355,880.72 |
| 15+ | Dhs. 344,642.38 | Dhs. 5,169,635.70 |
| 25+ | Dhs. 337,150.15 | Dhs. 8,428,753.75 |
| 50+ | Dhs. 318,419.59 | Dhs. 15,920,979.50 |
| 100+ | Dhs. 280,958.46 | Dhs. 28,095,846.00 |
| N+ | Dhs. 56,191.69 | Price Inquiry |
Request Quote / Inquiry

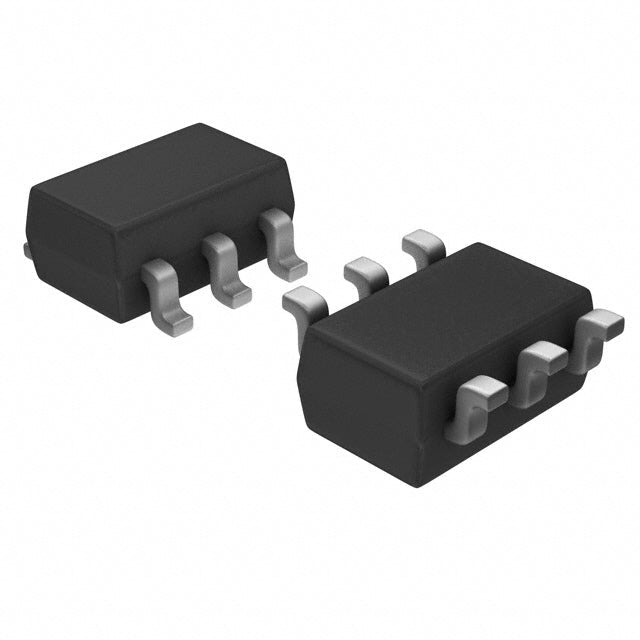

FAN105AM6X - AC/DC Offline Switching Controller
The FAN105AM6X from onsemi is a high-performance isolated flyback controller designed for AC/DC offline power conversion applications. This compact SOT-23-6 packaged controller delivers reliable power management with comprehensive protection features, making it ideal for aerospace, automotive, industrial, and telecommunications systems.
Key Features
- Isolated Flyback Topology - Provides galvanic isolation for enhanced safety and noise immunity
- Wide Supply Voltage Range - Operates from 7V to 25V with 17.5V start-up voltage
- Flexible Switching Frequency - 5kHz to 76kHz range enables design optimization
- Comprehensive Protection - Current limiting, over-temperature, over-voltage, and short circuit protection
- Surface Mount Package - Space-saving SOT-23-6 form factor for high-density designs
- Extended Temperature Range - Operates reliably from -40°C to 125°C
Applications
- Industrial power supplies and control systems
- Telecommunications infrastructure equipment
- Automotive electronics and charging systems
- Aerospace and defense power conversion
- Isolated DC/DC converters
Why Choose FAN105AM6X?
This controller combines onsemi's proven power management expertise with robust protection features and a compact footprint. The isolated flyback topology ensures safe operation in demanding environments, while the wide operating temperature range guarantees long-term reliability. With full manufacturer documentation and traceability, the FAN105AM6X meets the stringent requirements of mission-critical applications.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 17.5 V |
| Voltage - Supply (Vcc/Vdd) | 7V ~ 25V |
| Duty Cycle | - |
| Frequency - Switching | 5kHz ~ 76kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
FAN105AM6X.pdf
