onsemi FAN2558MP10X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.64 | $2.64 |
| 15+ | $0.61 | $9.15 |
| 25+ | $0.59 | $14.75 |
| 50+ | $0.56 | $28.00 |
| 100+ | $0.50 | $50.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Marketplace | Bulk |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 180mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 50dB (100kHz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |

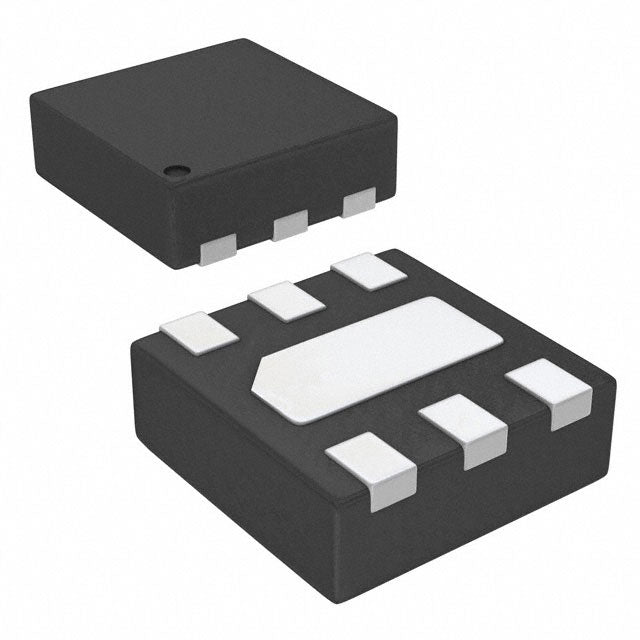

The FAN2558MP10X from Fairchild Semiconductor is a precision 1V low dropout linear regulator designed for space-efficient, battery-powered applications. Delivering up to 180mA with a low 150 µA quiescent current, it excels in extending operational life in portable devices. Its excellent 50dB PSRR at 100kHz ensures clean, noise-free power for sensitive RF and analog circuits. Housed in a compact 6-MLP (2x2) package, this LDO is an ideal choice for modern, miniaturized electronics requiring stable and efficient voltage regulation.
- Extended Battery Life: Ultra-low 150 µA quiescent current minimizes standby power draw, ideal for always-on devices.
- Clean Power Delivery: 50dB PSRR at 100kHz effectively filters high-frequency noise, ensuring stable operation for sensitive components.
- Compact Footprint: The 6-MLP (2x2) package saves critical board space for slim and miniaturized product designs.
- Reliable Performance: Guaranteed 180mA output current provides a robust power solution for a wide range of low-voltage ICs.
Battery-Powered IoT Sensors
The 150 µA quiescent current and 180mA output make it ideal for always-on sensor nodes where power efficiency extends battery life.
Portable Medical Devices
The stable 1V output with 50dB PSRR at 100kHz ensures clean power for sensitive analog front-ends in glucose monitors or pulse oximeters.
Wireless Communication Modules
Its high-frequency PSRR (50dB @ 100kHz) suppresses noise from RF transceivers, maintaining signal integrity in Bluetooth or Zigbee modules.
Microcontroller Core Supply
Modern MCUs with 1V cores benefit from the tight regulation and fast transient response of this LDO, preventing resets during load steps.
Wearable Electronics
The tiny 2x2mm MLP package fits space-constrained smartwatches and fitness bands while delivering reliable 1V power to low-power processors.
Industrial Sensor Interfaces
With 180mA capability, it can power both the sensor and its signal conditioning circuitry, providing a clean, stable 1V rail in noisy industrial environments.
- Q: What is the output voltage of the FAN2558MP10X?
- A: The FAN2558MP10X is a fixed 1V output LDO regulator.
- Q: What is the maximum output current?
- A: It can deliver up to 180mA of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 1V up to the absolute maximum rating (typically 6V); refer to the datasheet for exact limits.
- Q: What is the dropout voltage?
- A: Dropout voltage is not specified in the provided data; please consult the full datasheet.
- Q: What is the quiescent current?
- A: The quiescent current is a low 150 µA, making it suitable for battery-powered applications.
- Q: What package is available?
- A: It comes in a compact 6-MLP (2x2) package.
