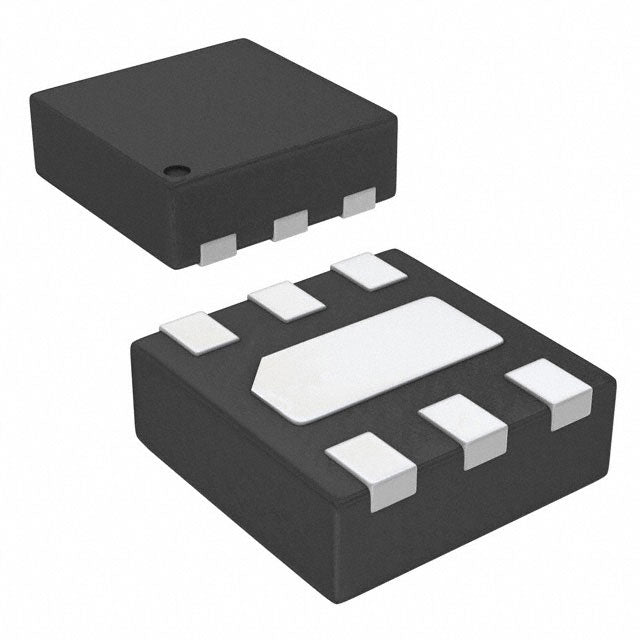

onsemi FAN54120MP420X
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 5.24 | Dhs. 5.24 |
| 15+ | Dhs. 5.07 | Dhs. 76.05 |
| 25+ | Dhs. 4.96 | Dhs. 124.00 |
| 50+ | Dhs. 4.68 | Dhs. 234.00 |
| 100+ | Dhs. 4.13 | Dhs. 413.00 |
| N+ | Dhs. 0.83 | Price Inquiry |
Request Quote / Inquiry
The FAN54120MP420X is a high-performance single-cell lithium-ion battery charger IC from onsemi, designed for portable electronics and USB-powered applications. This compact charging solution delivers reliable, programmable charging with comprehensive safety features.
Key Features
- 500mA Maximum Charge Current - Programmable constant current charging optimized for single-cell Li-Ion batteries
- USB Interface - Direct USB power input for convenient charging from standard USB ports
- Comprehensive Protection - Built-in over-current, over-voltage, and short-circuit fault protection
- Wide Operating Range - Supports battery pack voltages from 2.5V to 4.5V with supply voltage up to 6V
- Extended Temperature Range - Operates reliably from -30°C to 85°C (TA)
- Compact Surface Mount Package - Space-saving 6-VDFN (2x2mm) exposed pad design
Applications
Ideal for smartphones, tablets, portable medical devices, wireless headsets, power banks, and other battery-powered consumer electronics requiring efficient USB charging capabilities.
Why Choose HQICKEY?
At HQICKEY, we specialize in providing authentic semiconductor components with global warranty support. All our products are sourced directly from authorized distributors to ensure quality and reliability.
Related Products
Looking for more battery charging solutions? Explore our complete Battery Chargers collection featuring Li-Ion, NiMH, and lead-acid charger ICs from leading manufacturers.
Stay updated with the latest semiconductor industry news and product releases on our News Blog.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Factory | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current |
| Fault Protection | Over Current, Over Voltage, Short Circuit |
| Charge Current - Max | 500mA |
| Battery Pack Voltage | 2.5V ~ 4.5V |
| Voltage - Supply (Max) | 6V |
| Interface | USB |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
FAN54120MP420X.pdf
