onsemi FAN6605MX
Regular price
Dhs. 2.96
Regular price
Dhs. 3.11
Sale price
Dhs. 2.96
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.96 | Dhs. 2.96 |
| 15+ | Dhs. 2.86 | Dhs. 42.90 |
| 25+ | Dhs. 2.80 | Dhs. 70.00 |
| 50+ | Dhs. 2.64 | Dhs. 132.00 |
| 100+ | Dhs. 2.33 | Dhs. 233.00 |
| N+ | Dhs. 0.47 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

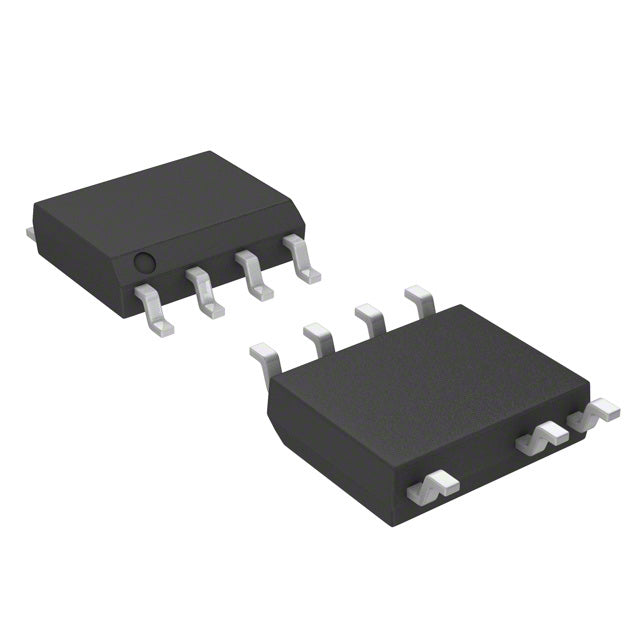

FAN6605MX - onsemi mWSaver™ Flyback Controller IC
The FAN6605MX from onsemi is a high-performance AC/DC offline flyback controller designed for energy-efficient power supply applications. Part of the mWSaver™ series, this IC delivers reliable isolated power conversion with comprehensive fault protection.
Key Features:
- Flyback Topology - Optimized for isolated AC/DC conversion
- 65kHz Switching Frequency - Balanced efficiency and component size
- 10V to 22V Supply Range - Flexible operating voltage
- 16V Start-Up Voltage - Reliable power-on sequencing
- 75% Maximum Duty Cycle - High power delivery capability
- Comprehensive Protection - Current limiting, open loop, over-temperature, and over-voltage safeguards
- Wide Temperature Range - -40°C to 105°C operation for industrial applications
- Compact 7-SOIC Package - Space-efficient surface mount design
- RoHS Compliant - Meets environmental standards
Applications:
Ideal for AC/DC adapters, auxiliary power supplies, battery chargers, and industrial control systems requiring isolated power conversion with robust protection features.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | mWSaver™ |
| Packaging | Cut Tape (CT) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 22V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| ROHS |  |
FAN6605MX.pdf
×
