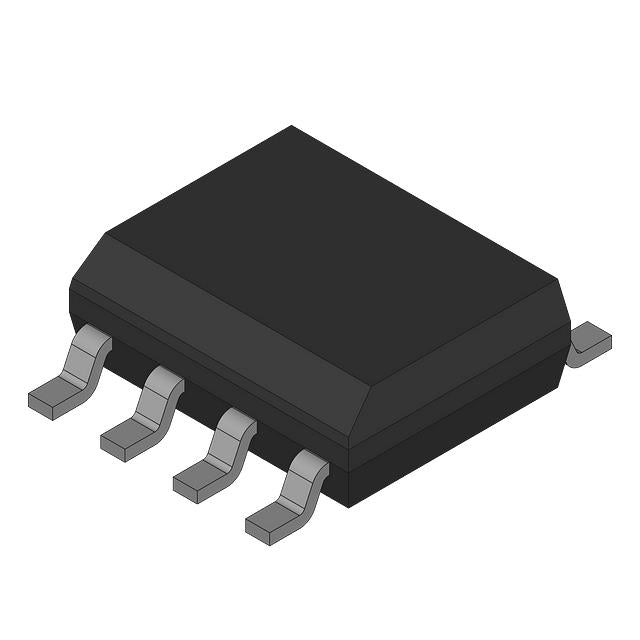

Fairchild Semiconductor FAN7081CMX
Regular price
$0.98
Regular price
$1.03
Sale price
$0.98
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.98 | $0.98 |
| 15+ | $0.95 | $14.25 |
| 25+ | $0.93 | $23.25 |
| 50+ | $0.88 | $44.00 |
| 100+ | $0.77 | $77.00 |
| N+ | $0.15 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Fairchild Semiconductor |
| Product Series | |
| Packaging | Bulk | |
| Driven Configuration | High-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, MOSFET (N-Channel, P-Channel) |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 8V, 12.6V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 15ns, 10ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
FAN7081CMX.pdf
×
