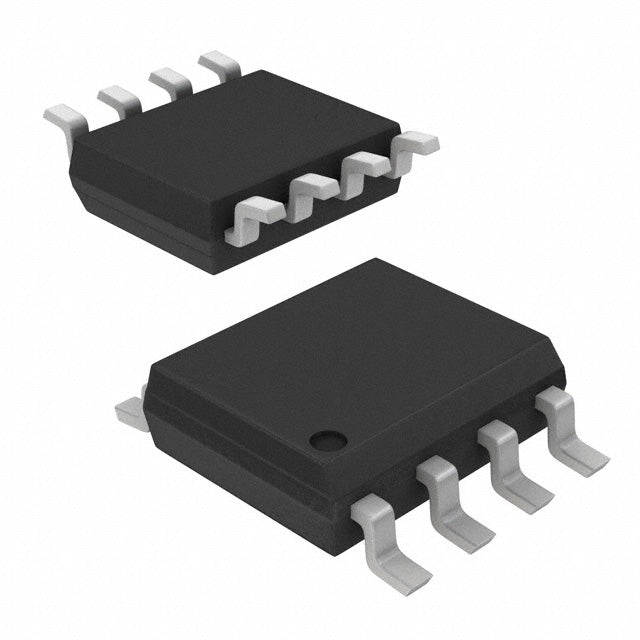

onsemi FAN7085CMX_F085
Regular price
$1.09
Regular price
$1.15
Sale price
$1.09
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.09 | $1.09 |
| 15+ | $1.06 | $15.90 |
| 25+ | $1.04 | $26.00 |
| 50+ | $0.98 | $49.00 |
| 100+ | $0.86 | $86.00 |
| N+ | $0.17 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Driven Configuration | High-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Voltage - Supply | 4.5V ~ 20V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 450mA, 450mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 300 V |
| Rise / Fall Time (Typ) | 65ns, 25ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
FAN7085CMX_F085.pdf
×
