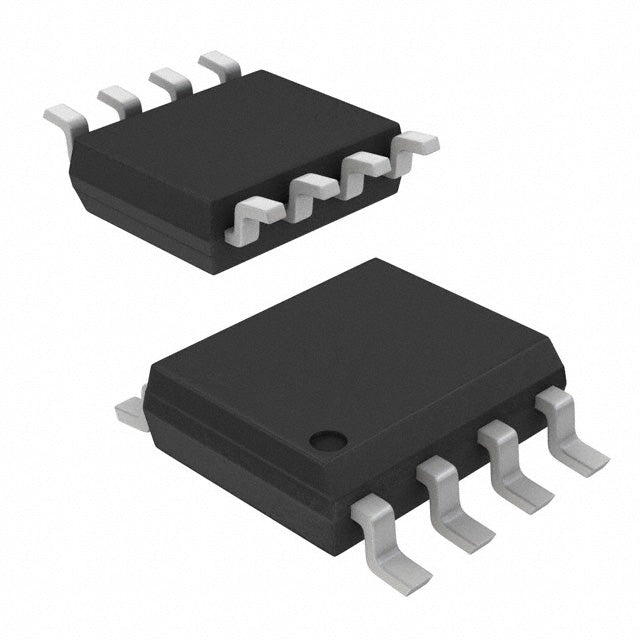

FAN7602MX Flyback PWM Controller IC by onsemi
The FAN7602MX is a high-performance, cost-effective PWM controller IC designed for AC/DC offline flyback switching power supply applications up to 48 watts. Manufactured by onsemi, this integrated circuit delivers reliable power conversion with comprehensive protection features for industrial, telecommunications, medical, and consumer electronics applications.
Key Features & Benefits
- Flyback Topology: Optimized for isolated AC/DC offline switching applications
- 65kHz Switching Frequency: Enables compact transformer design and reduced EMI
- Wide Supply Voltage Range: 8V to 20V operating range with 12V startup voltage
- 75% Maximum Duty Cycle: Maximizes power transfer efficiency
- Comprehensive Protection: Built-in overload and overvoltage fault protection
- Extended Temperature Range: -25°C to 125°C ambient operating temperature for harsh environments
- Compact 8-SOIC Package: Space-saving surface mount design (3.90mm width)
- Isolated Output: Ensures safety and noise immunity in power supply designs
Typical Applications
- AC/DC adapters and chargers
- Auxiliary power supplies for industrial equipment
- Telecom and networking power modules
- LED driver circuits
- Consumer electronics power supplies
- Medical device power conversion
Why Choose FAN7602MX?
The FAN7602MX offers design engineers a proven, reliable solution for offline flyback power supplies with excellent cost-performance ratio. Its integrated protection features reduce external component count, while the 65kHz switching frequency enables smaller magnetic components. Backed by onsemi's reputation for quality and long lifecycle support, this controller IC is ideal for applications requiring robust, efficient AC/DC power conversion.
Quality Assurance: All components are sourced from authorized distributors with full traceability and RoHS/REACH compliance documentation available upon request.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V |
| Duty Cycle | 75% |
| Frequency - Switching | 65kHz |
| Power (Watts) | 48 W |
| Fault Protection | Over Load, Over Voltage |
| Control Features | - |
| Operating Temperature | -25°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
