onsemi FAN7621BSJX
Regular price
Dhs. 7.45
Regular price
Dhs. 7.83
Sale price
Dhs. 7.45
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.45 | Dhs. 7.45 |
| 15+ | Dhs. 7.20 | Dhs. 108.00 |
| 25+ | Dhs. 7.05 | Dhs. 176.25 |
| 50+ | Dhs. 6.66 | Dhs. 333.00 |
| 100+ | Dhs. 5.87 | Dhs. 587.00 |
| N+ | Dhs. 1.17 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

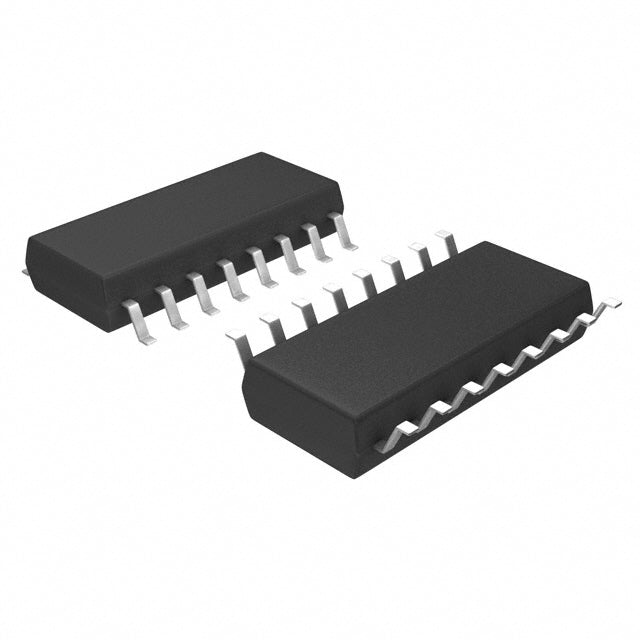

FAN7621BSJX Half-Bridge Gate Driver IC by onsemi
The FAN7621BSJX is a high-performance half-bridge gate driver IC from onsemi, designed for AC/DC offline switching power supplies. This isolated gate driver delivers up to 192W of power with switching frequencies up to 300kHz, making it ideal for aerospace, automotive, industrial, telecommunications, medical, and consumer electronics applications requiring reliable, efficient power conversion.
Key Features & Benefits
- High Power Capability: Supports up to 192W output power for demanding applications
- Fast Switching: Up to 300kHz switching frequency enables compact transformer designs
- Comprehensive Protection: Current limiting, overload, over-temperature, and over-voltage fault protection
- Wide Operating Range: 10V to 25V supply voltage with 12.5V start-up voltage
- Isolated Output: Provides galvanic isolation for enhanced safety and noise immunity
- Frequency Control: Integrated control features for optimized performance
- Extended Temperature Range: -40°C to 130°C (TJ) for harsh environments
- Compact Surface Mount Package: 16-SOIC (5.30mm width) for space-efficient PCB layouts
Applications
This half-bridge gate driver is well-suited for AC/DC power supplies, battery chargers, LED drivers, motor control systems, and other power conversion applications requiring high efficiency and reliability with full traceability and long lifecycle support.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Half-Bridge |
| Voltage - Start Up | 12.5 V |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 25V |
| Duty Cycle | 50% |
| Frequency - Switching | Up to 300kHz |
| Power (Watts) | 192 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | Frequency Control |
| Operating Temperature | -40°C ~ 130°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 16-SOP |
| ROHS |  |
FAN7621BSJX.pdf
×
