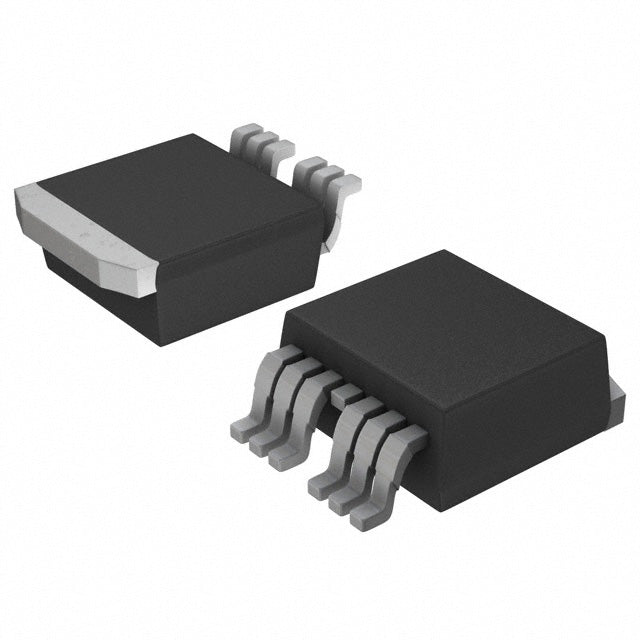

onsemi FSCM0765RJX - FPS™ Series AC-DC Offline Switching Regulator
The FSCM0765RJX from onsemi is a high-performance isolated flyback switching regulator designed for AC-DC power conversion applications up to 70W. This surface-mount D2PAK-6 device features integrated switching with 650V breakdown voltage, 66kHz switching frequency, and comprehensive protection circuitry including over-current, over-voltage, over-temperature, and overload protection.
Key Features:
- Isolated flyback topology with internal switch
- 650V breakdown voltage for high-voltage applications
- 70W maximum power output
- 66kHz switching frequency for efficient operation
- Wide supply voltage range: 8V to 20V (Vcc/Vdd)
- 12V start-up voltage with 80% duty cycle
- Comprehensive fault protection suite
- Surface mount D2PAK-6 package for automated assembly
- Operating temperature range: -25°C to +85°C (TA)
- RoHS and REACH compliant with full traceability
Applications: Industrial power supplies, telecom equipment, consumer electronics, LED lighting drivers, auxiliary power modules, and other isolated AC-DC conversion systems requiring reliable long-lifecycle components.
Packaging: Available in Tape & Reel (TR) for high-volume manufacturing.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V |
| Duty Cycle | 80% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 70 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab), TO-263CB |
| Supplier Device Package | D2PAK-6 |
