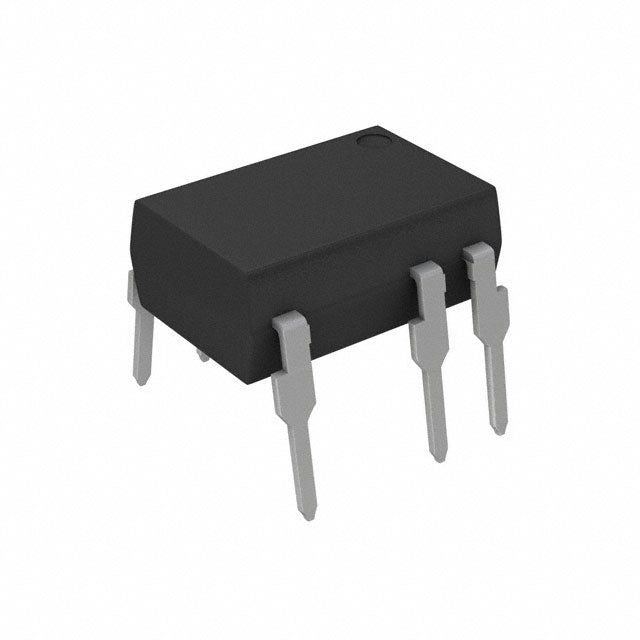

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
FSD210B
Regular price
Dhs. 1.87
Regular price
Dhs. 1.99
Sale price
Dhs. 1.87
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.87 AED | Dhs. 1.87 AED |
| 15+ | Dhs. 1.83 AED | Dhs. 27.45 AED |
| 25+ | Dhs. 1.79 AED | Dhs. 44.75 AED |
| 50+ | Dhs. 1.69 AED | Dhs. 84.50 AED |
| 100+ | Dhs. 1.49 AED | Dhs. 149.00 AED |
| N+ | Dhs. 0.30 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Recycling Electronic Components
onsemi FSD210B - 7W Flyback Switching Regulator IC
The FSD210B from onsemi's FPS™ series is a high-performance, isolated flyback switching regulator designed for offline AC/DC power conversion applications up to 7W. Featuring a 700V breakdown voltage and integrated protection circuitry, this IC delivers reliable, efficient power management for industrial, consumer, and telecommunications equipment.
Key Features
- 700V High-Voltage Breakdown - Robust design for demanding applications
- Integrated Flyback Topology - Simplified circuit design with isolated output
- 134kHz Switching Frequency - Optimized for efficiency and EMI performance
- Comprehensive Protection - Current limiting, overload, and over-temperature safeguards
- Wide Operating Range - 6.7V to 20V supply voltage, -25°C to 85°C ambient
- Through-Hole 7-DIP Package - Easy integration and reliable mounting
Applications
Ideal for low-power offline power supplies in set-top boxes, smart home devices, industrial sensors, LED drivers, auxiliary power modules, and battery chargers requiring galvanic isolation and robust fault protection.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 8.7 V |
| Voltage - Supply (Vcc/Vdd) | 6.7V ~ 20V |
| Duty Cycle | 66% |
| Frequency - Switching | 134kHz |
| Power (Watts) | 7 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature |
| Control Features | - |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-DIP |
FSD210B.pdf
×
