onsemi FSDH0265RL
Regular price
Dhs. 2.25
Regular price
Dhs. 2.36
Sale price
Dhs. 2.25
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.25 | Dhs. 2.25 |
| 15+ | Dhs. 2.17 | Dhs. 32.55 |
| 25+ | Dhs. 2.12 | Dhs. 53.00 |
| 50+ | Dhs. 2.01 | Dhs. 100.50 |
| 100+ | Dhs. 1.77 | Dhs. 177.00 |
| N+ | Dhs. 0.35 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

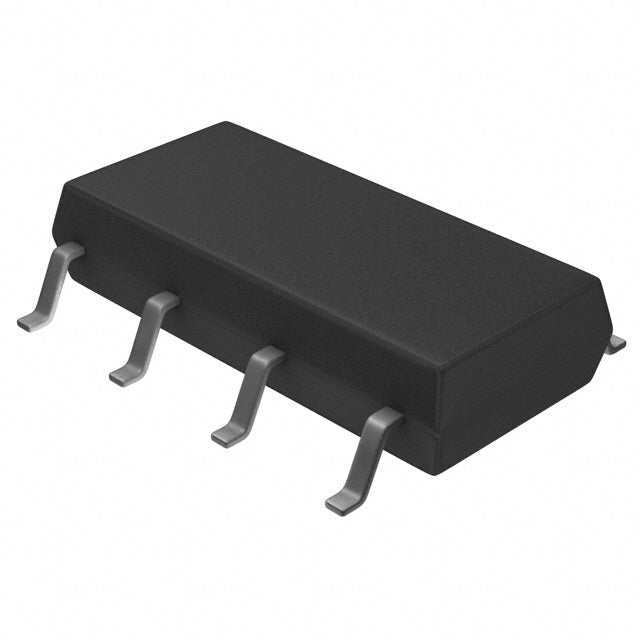

FSDH0265RL - onsemi FPS™ Offline Flyback Switching Regulator
The FSDH0265RL is a high-performance offline flyback switching regulator from onsemi's FPS™ (Fairchild Power Switch) series, designed for isolated AC-DC power conversion applications up to 27W. This integrated power switch combines a 650V high-voltage MOSFET with a current-mode PWM controller in a compact 8-LSOP surface-mount package.
Key Features & Benefits
- Integrated 650V Power MOSFET - Reduces component count and board space for cost-effective designs
- 27W Output Power - Ideal for adapters, chargers, and auxiliary power supplies in industrial and consumer applications
- 100kHz Switching Frequency - Enables use of smaller transformers and output capacitors
- Comprehensive Protection - Built-in current limiting, overload, over-temperature, and over-voltage protection ensures reliable operation
- Wide Operating Range - 8V to 20V supply voltage with 12V start-up for flexible design implementation
- Surface Mount 8-LSOP Package - Optimized for automated assembly and high-density PCB layouts
Typical Applications
- AC-DC adapters and chargers for consumer electronics
- Auxiliary power supplies in industrial equipment
- Standby power for appliances and white goods
- LED driver circuits
- Battery charging systems
Quality & Compliance
Manufactured by onsemi with full traceability and RoHS/REACH compliance. Operating temperature range of -25°C to +85°C (TA) ensures reliable performance across industrial and commercial environments. Long lifecycle commitment supports design-in for aerospace, automotive, industrial, medical, and telecom applications.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V |
| Duty Cycle | 77% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 27 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-LSOP |
FSDH0265RL.pdf
×
