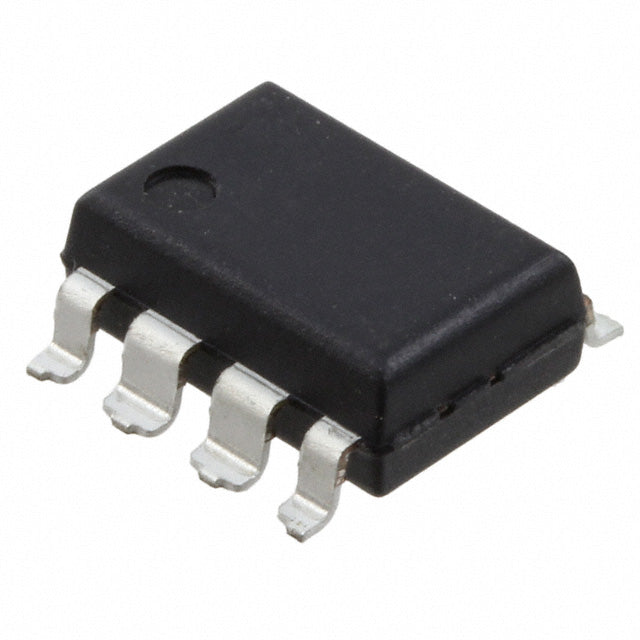

onsemi FSDM0365RLX
Regular price
Dhs. 2.85
Regular price
Dhs. 3.00
Sale price
Dhs. 2.85
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 2.85 | Dhs. 2.85 |
| 15+ | Dhs. 2.76 | Dhs. 41.40 |
| 25+ | Dhs. 2.70 | Dhs. 67.50 |
| 50+ | Dhs. 2.55 | Dhs. 127.50 |
| 100+ | Dhs. 2.25 | Dhs. 225.00 |
| N+ | Dhs. 0.45 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
FSDM0365RLX - 30W Flyback Switching Regulator
The FSDM0365RLX from onsemi is a high-performance 30-watt isolated flyback switching regulator featuring integrated power switches and comprehensive protection circuitry. Part of the FPS™ (Fairchild Power Switch) series, this device delivers reliable AC-DC conversion for industrial, consumer, and telecom applications requiring long lifecycle support and full traceability.
Key Features & Benefits
- 30W Power Output - Efficient flyback topology for compact power supply designs
- 650V Breakdown Voltage - High-voltage capability for universal AC input applications
- Integrated Protection - Current limiting, over-load, over-temperature, and over-voltage safeguards
- 67kHz Switching Frequency - Optimized for transformer size and EMI performance
- Wide Operating Range - 8V to 20V supply voltage, -25°C to 85°C ambient temperature
- Surface Mount Package - 8-LSOP gull-wing design for automated assembly
Applications
Ideal for AC-DC power supplies in set-top boxes, home appliances, LED lighting drivers, auxiliary power modules, and industrial control systems requiring isolated output and robust fault protection.
Compliance: RoHS/REACH compliant. Full manufacturer traceability and lifecycle support available.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 20V |
| Duty Cycle | 77% |
| Frequency - Switching | 67kHz |
| Power (Watts) | 30 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-LSOP |
FSDM0365RLX.pdf
×
