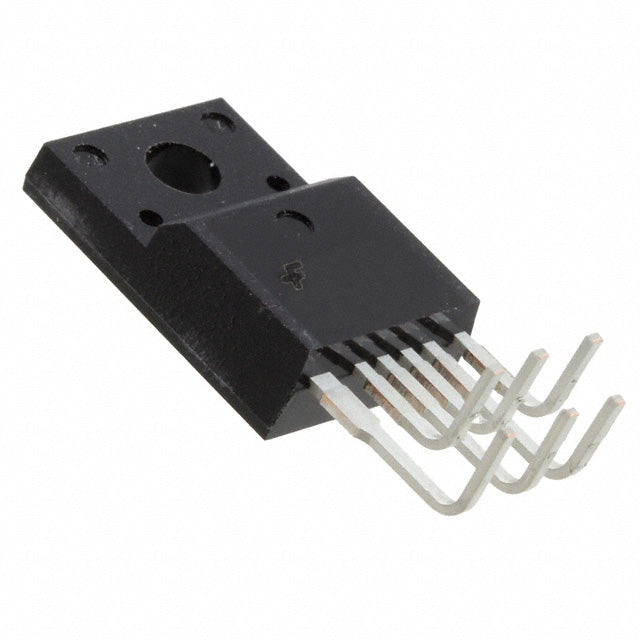

onsemi FSGM0465RLDTU
Regular price
Dhs. 355,874.90
Regular price
Dhs. 374,605.16
Sale price
Dhs. 355,874.90
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
onsemi FSGM0465RLDTU - 70W Flyback Switching Regulator IC
The FSGM0465RLDTU from onsemi is a high-performance 70-watt offline flyback switching regulator designed for AC-DC power conversion applications. Part of the FPS™ (Fairchild Power Switch) series, this integrated power switch delivers reliable, efficient power management with comprehensive fault protection.
Key Features & Benefits
- 70W Power Output - Robust power delivery for industrial, consumer, and telecom applications
- 650V High-Voltage MOSFET - Integrated breakdown voltage for universal AC input compatibility
- 66kHz Switching Frequency - Optimized for transformer size reduction and EMI performance
- Comprehensive Protection - Built-in over-voltage, over-current, over-temperature, over-load, and short-circuit protection
- Wide Operating Range - 7.5V to 26V supply voltage, -40°C to 125°C junction temperature
- Isolated Flyback Topology - Ideal for offline SMPS designs requiring output isolation
- 70% Maximum Duty Cycle - Flexible design headroom for various applications
Applications
This switching regulator IC is ideal for AC-DC adapters, battery chargers, auxiliary power supplies, LED drivers, set-top boxes, home appliances, and industrial control systems requiring reliable isolated power conversion.
Authorized Distributor - Full Traceability
We supply 100% authentic onsemi components with full manufacturer documentation, traceability, and warranty support. Long lifecycle availability guaranteed for your design-in programs.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 26V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 70 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L (L-Forming) |
| ROHS |  |
FSGM0465RLDTU.pdf
×
