onsemi FSGM0565RBLDTU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Request Quote / Inquiry

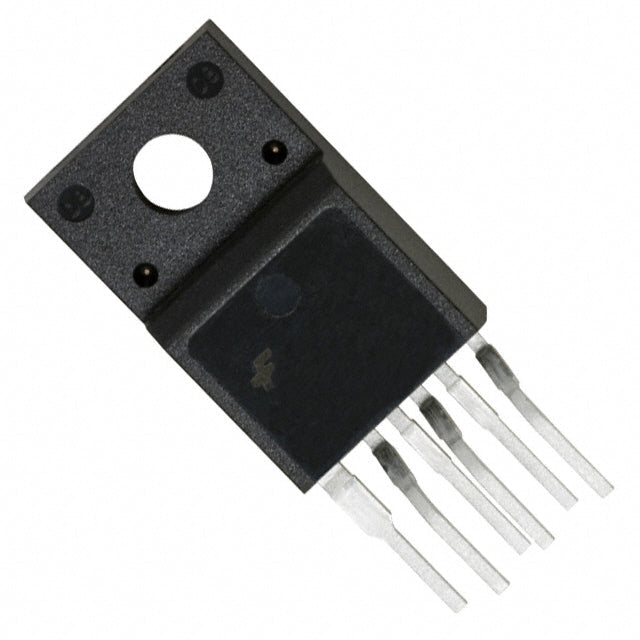

FSGM0565RBLDTU - onsemi FPS™ Series Flyback Switching Regulator
The FSGM0565RBLDTU is a high-performance 80W isolated flyback switching regulator from onsemi's FPS™ (Fairchild Power Switch) series. Designed for offline AC-DC power conversion applications, this integrated controller features a 650V breakdown voltage rating and delivers reliable, efficient power management for industrial, consumer, and telecommunications equipment.
Key Features & Benefits
- 80W Power Output: Robust power delivery for demanding applications
- 650V Breakdown Voltage: High-voltage capability for universal AC input designs
- Integrated Flyback Topology: Simplified design with internal switching elements
- 66kHz Switching Frequency: Optimized for efficiency and EMI performance
- Comprehensive Protection: Current limiting, overload, over-temperature, over-voltage, and short-circuit protection
- Wide Operating Range: 7.5V to 26V supply voltage, -40°C to 125°C junction temperature
- 70% Maximum Duty Cycle: Flexible design headroom for various applications
Applications
Ideal for AC-DC power supplies in set-top boxes, home appliances, LED lighting drivers, industrial control systems, and auxiliary power modules requiring isolated output and robust fault protection.
Authorized Distributor - Full Traceability
We supply 100% authentic onsemi components with complete manufacturer documentation, date codes, and lot traceability. All units are sourced through authorized channels and backed by onsemi's warranty and long lifecycle support commitment.
Documentation & Support
Complete datasheets, reference designs, and application notes available. Our technical team provides design-in support for integration, thermal management, and compliance requirements.
Stock Availability: Contact us for current inventory levels, volume pricing, and delivery schedules. We maintain strategic stock positions to support your production timelines and mitigate supply chain risk.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 26V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 80 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L (Forming) |
FSGM0565RBLDTU.pdf
