onsemi FSGM0565RBUDTU
Regular price
Dhs. 3.75
Regular price
Dhs. 3.93
Sale price
Dhs. 3.75
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.75 | Dhs. 3.75 |
| 15+ | Dhs. 3.62 | Dhs. 54.30 |
| 25+ | Dhs. 3.54 | Dhs. 88.50 |
| 50+ | Dhs. 3.34 | Dhs. 167.00 |
| 100+ | Dhs. 2.95 | Dhs. 295.00 |
| N+ | Dhs. 0.59 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

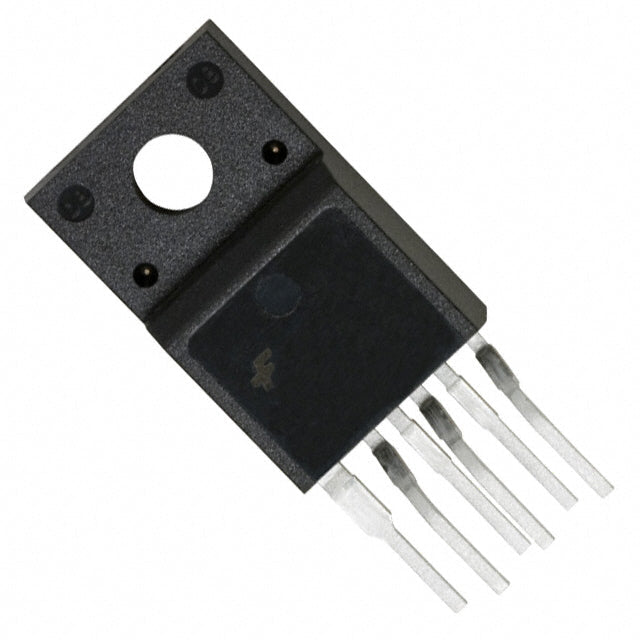

onsemi FSGM0565RBUDTU - 650V Flyback Switching Regulator IC
The FSGM0565RBUDTU from onsemi's FPS™ (Fairchild Power Switch) series is a high-performance, isolated flyback switching regulator designed for AC-DC offline power conversion applications up to 80W. This integrated power switch features a 650V breakdown voltage, 66kHz switching frequency, and comprehensive fault protection including over-current, over-voltage, over-temperature, short circuit, and overload protection.
Key Features & Benefits
- High Voltage Capability: 650V breakdown voltage for robust AC-DC conversion
- 80W Power Output: Suitable for medium-power offline applications
- Integrated Protection: Multi-layer fault protection ensures system reliability and safety
- Wide Operating Range: 7.5V to 26V supply voltage, -40°C to 125°C junction temperature
- Efficient Design: 70% duty cycle, 66kHz switching frequency for optimized performance
- Through-Hole Mounting: TO-220F-6L package with formed leads for easy PCB integration
Typical Applications
- AC-DC power supplies and adapters
- Industrial control systems
- Consumer electronics power management
- Telecom and networking equipment
- LED lighting drivers
- Battery chargers
Quality & Compliance: This product is sourced from authorized distributors with full traceability and RoHS/REACH compliance documentation. Long lifecycle commitment ensures availability for critical design-in applications across aerospace, automotive, industrial, medical, and telecom segments.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 26V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 80 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L (Forming) |
FSGM0565RBUDTU.pdf
×
