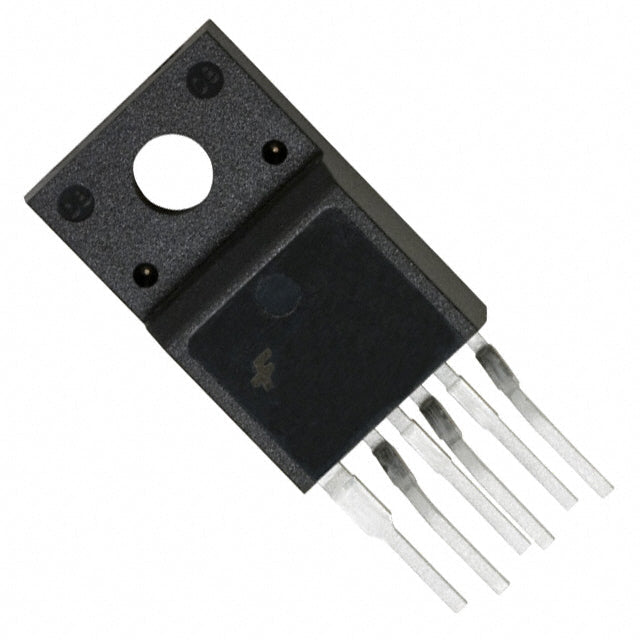

onsemi FSGM0565RWDTU
Regular price
Dhs. 355,874.90
Regular price
Dhs. 374,605.16
Sale price
Dhs. 355,874.90
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,874.90 | Dhs. 355,874.90 |
| 15+ | Dhs. 344,636.75 | Dhs. 5,169,551.25 |
| 25+ | Dhs. 337,144.64 | Dhs. 8,428,616.00 |
| 50+ | Dhs. 318,414.39 | Dhs. 15,920,719.50 |
| 100+ | Dhs. 280,953.87 | Dhs. 28,095,387.00 |
| N+ | Dhs. 56,190.77 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
FSGM0565RWDTU - onsemi FPS™ Series Flyback Switching Regulator
The FSGM0565RWDTU from onsemi is a high-performance 80W isolated flyback switching regulator designed for AC-DC offline power conversion applications. Part of the proven FPS™ (Fairchild Power Switch) series, this integrated controller combines a 650V MOSFET with advanced protection features to deliver reliable, efficient power management for industrial, telecommunications, and consumer electronics.
Key Features & Benefits
- Integrated 650V Power MOSFET - Reduces component count and simplifies design
- 80W Output Power - Suitable for mid-range power applications
- 66kHz Switching Frequency - Optimized for transformer size and efficiency
- Comprehensive Protection - Current limiting, over-voltage, over-temperature, over-load, and short-circuit protection
- Wide Operating Range - 7.5V to 26V supply voltage, -40°C to 125°C junction temperature
- Through-Hole TO-220F-6L Package - Easy assembly with formed leads for PCB mounting
- RoHS Compliant - Meets environmental standards for global markets
Typical Applications
- AC-DC power adapters and chargers
- Auxiliary power supplies for industrial equipment
- Telecom and networking infrastructure
- Consumer electronics and appliances
- LED lighting drivers
Why Choose Authorized Distribution?
When you purchase the FSGM0565RWDTU from our authorized distributor network, you receive:
- ✓ 100% Genuine onsemi Components - Factory-sealed with full manufacturer warranty
- ✓ Complete Documentation - Datasheets, application notes, and reference designs
- ✓ Full Traceability - Lot codes and certificates of conformance available
- ✓ Long Lifecycle Support - Mitigate obsolescence risk for your programs
- ✓ Technical Design-In Support - Expert guidance for your power supply design
Need assistance with your design? Our applications engineers are ready to help you select the right power management solution and provide reference designs to accelerate your time-to-market.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 26V |
| Duty Cycle | 70% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 80 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package | TO-220F-6L (Forming) |
| ROHS |  |
FSGM0565RWDTU.pdf
×
