onsemi FSL136HRL
Regular price
Dhs. 355,904.94
Regular price
Dhs. 374,636.78
Sale price
Dhs. 355,904.94
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,904.94 | Dhs. 355,904.94 |
| 15+ | Dhs. 344,665.84 | Dhs. 5,169,987.60 |
| 25+ | Dhs. 337,173.10 | Dhs. 8,429,327.50 |
| 50+ | Dhs. 318,441.26 | Dhs. 15,922,063.00 |
| 100+ | Dhs. 280,977.59 | Dhs. 28,097,759.00 |
| N+ | Dhs. 56,195.52 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

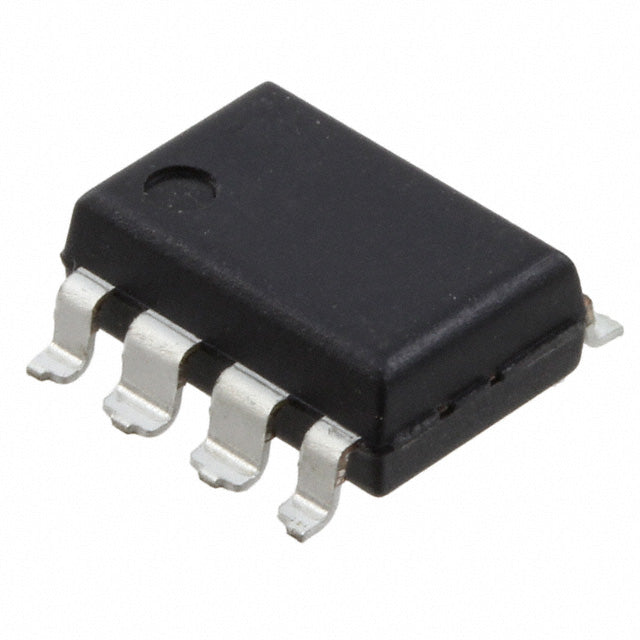

onsemi FSL136HRL - FPS™ Series Flyback Switching Controller
The FSL136HRL is a high-performance, isolated flyback switching controller from onsemi's FPS™ (Fairchild Power Switch) series. Designed for offline AC-DC power conversion applications up to 26W, this integrated controller features a 650V breakdown voltage rating and comprehensive protection circuitry, making it ideal for industrial, consumer, and telecommunications power supply designs.
Key Features & Benefits
- 650V High-Voltage Capability: Robust breakdown voltage for universal AC input applications (85-265VAC)
- Integrated Power Switch: Built-in MOSFET eliminates external switching components, reducing BOM cost and board space
- Isolated Flyback Topology: Provides galvanic isolation between input and output for safety-critical applications
- 100kHz Switching Frequency: Enables compact transformer design while maintaining high efficiency
- Comprehensive Protection: Current limiting, overload, over-temperature, over-voltage, and short-circuit protection ensure reliable operation
- Wide Operating Range: 8V to 26V supply voltage with 12V start-up, -40°C to 105°C ambient temperature rating
- Surface Mount 8-LSOP Package: Space-saving gull-wing SMD package for automated assembly
Typical Applications
- AC-DC adapters and chargers (up to 26W)
- Auxiliary power supplies for industrial equipment
- Set-top boxes and consumer electronics
- LED lighting drivers
- Smart home and IoT device power supplies
- Telecom and networking equipment
Why Choose Authorized Distribution?
When you source the FSL136HRL through our authorized channel, you receive:
- ✓ 100% Genuine onsemi Components - Factory-sealed, traceable stock with full manufacturer warranty
- ✓ Complete Documentation - Datasheets, application notes, reference designs, and technical support resources
- ✓ Long Lifecycle Availability - Committed stock programs to support your product roadmap and mitigate obsolescence risk
- ✓ Global Logistics - Reliable shipping through authorized channels with proper handling and ESD protection
- ✓ Design-In Support - Access to onsemi FAEs and technical resources for circuit optimization
All specifications subject to manufacturer's datasheet. Contact us for volume pricing, lead times, and custom packaging options.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 26V |
| Duty Cycle | 77% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 26 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-LSOP |
FSL136HRL.pdf
×
