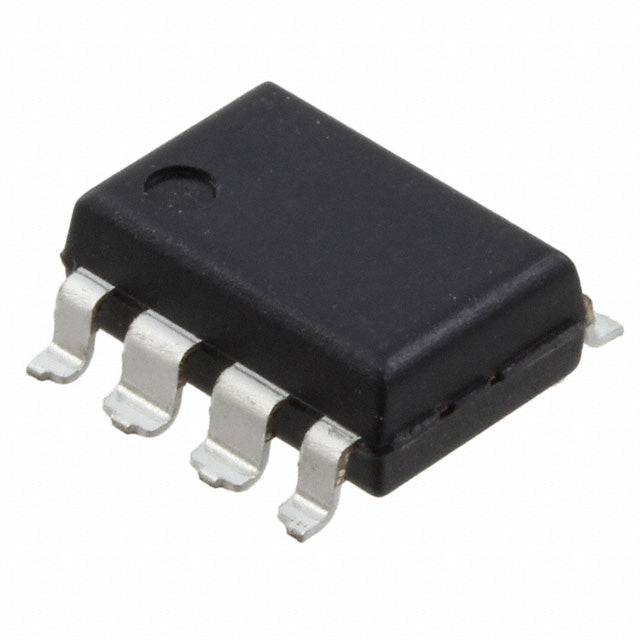

onsemi FSL136HRLX
Regular price
Dhs. 355,904.94
Regular price
Dhs. 374,636.78
Sale price
Dhs. 355,904.94
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 355,904.94 | Dhs. 355,904.94 |
| 15+ | Dhs. 344,665.84 | Dhs. 5,169,987.60 |
| 25+ | Dhs. 337,173.10 | Dhs. 8,429,327.50 |
| 50+ | Dhs. 318,441.26 | Dhs. 15,922,063.00 |
| 100+ | Dhs. 280,977.59 | Dhs. 28,097,759.00 |
| N+ | Dhs. 56,195.52 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
onsemi FSL136HRLX - FPS™ Flyback Switching Controller IC
The FSL136HRLX from onsemi is a high-performance offline flyback switching controller IC from the FPS™ (Fairchild Power Switch) series, designed for isolated AC-DC power conversion applications up to 26W. This integrated controller features a 650V breakdown voltage rating and operates at 100kHz switching frequency, making it ideal for compact, efficient power supply designs in aerospace, automotive, industrial, and telecommunications equipment.
Key Features & Benefits
- Integrated 650V MOSFET: High breakdown voltage for universal AC input applications
- 26W Power Output: Optimized for low-to-medium power offline converters
- 100kHz Switching Frequency: Enables smaller transformer and filter components
- Comprehensive Protection: Current limiting, overload, over-temperature, over-voltage, and short circuit protection
- Wide Operating Range: 8V to 26V supply voltage, -40°C to 105°C ambient temperature
- Low Startup Voltage: 12V startup for improved efficiency
- Surface Mount 8-LSOP Package: Space-saving design for high-density PCB layouts
Typical Applications
- AC-DC adapters and chargers
- Auxiliary power supplies for industrial equipment
- Standby power for consumer electronics
- LED driver circuits
- Smart home and IoT device power supplies
Why Choose Authorized Distribution?
All FSL136HRLX units are sourced through authorized onsemi distribution channels, ensuring:
- 100% genuine components with full manufacturer traceability
- Complete technical documentation and datasheets
- Long lifecycle availability to support your product programs
- Design-in support and reference designs
- Compliance with RoHS and environmental standards
Need technical support or design assistance? Contact our engineering team for reference designs, application notes, and expert guidance on integrating the FSL136HRLX into your power supply design.
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | FPS™ |
| Packaging | | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 26V |
| Duty Cycle | 77% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 26 W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-LSOP |
| ROHS |  |
FSL136HRLX.pdf
×
